Waste aluminum plastic composite panel recycling plant

Waste aluminum plastic composite panel recycling plant is designed for processing waste aluminum plastic composite panels, to get plastic and aluminum, which can realize the purpose of aluminum & plastic recycling, and earn economic profits from it.

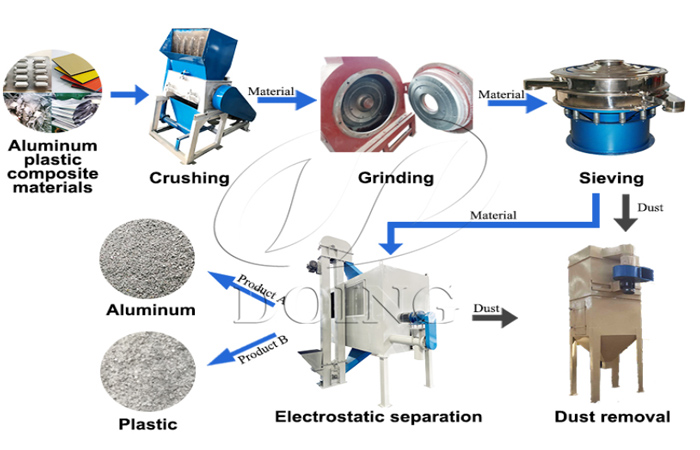

The main working process of waste aluminum plastic composite panel recycling plant is mainly crushing, grinding, sieving and electrostatic separation. The whole process is dry type physical separation process, without air, soil, chemical or water pollution, which is a totally environmental protection machine.

[ Related Reading: How does aluminum plastic recycling plant work? ]

working process of waste aluminum plastic composie panel recycling plantWorking process of aluminum plastic composite panel recycling plant

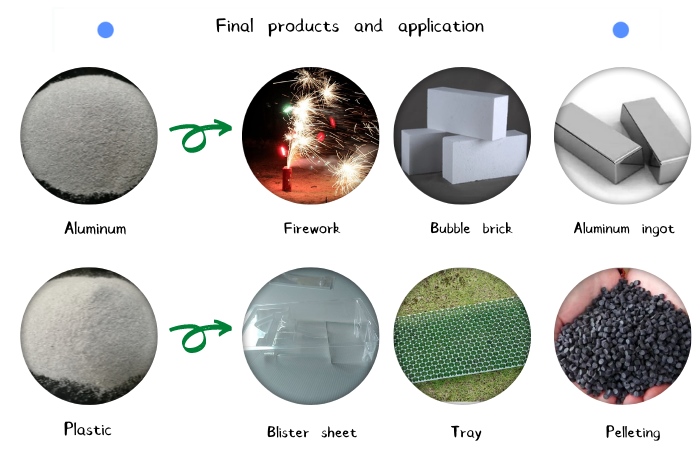

The final products of aluminum and plastic recycled are very pure, which has wide range of application. The aluminum can be sold directly, or to make aluminum products, like firework, bubble brick, etc. As for plastic, it can be sold directly, too. Or you can make new plastic products, like tray, blister sheet, etc.

fianl products and applicationFinal products and application

The materials used for aluminum plastic composite panel recycling plant of Henan Doing are exquisite.

The crusher use SKD-11 alloy blades with hardness in HRC58 which could ensure the good toughness under high wear resistance guarantee with the alternated splayed structure.

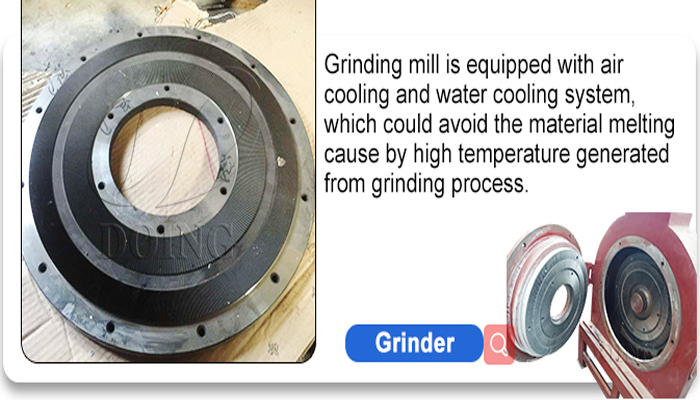

Grinding mill is equipped with air cooling and water cooling system, which could avoid the material melting, caused by high temperature generated from grinding process.

grinding mill advantageAdvantage of grinding mill

Electrostatic separator can separate metal and plastic by high voltage electrostatic, along with bucket elevator to form an automatic sorting circle system to get high separate rate over 99.9%.

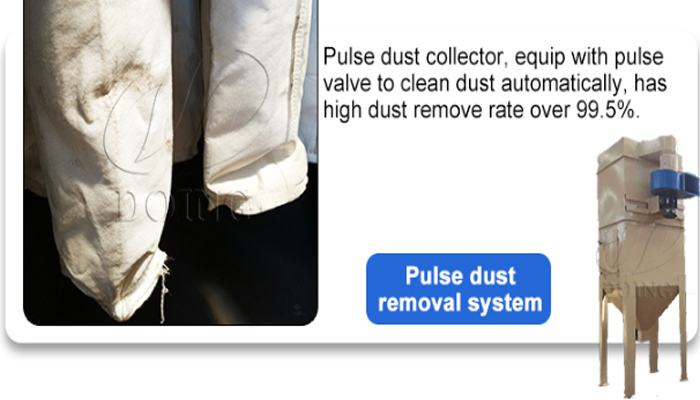

Pulse dust collector, equip with pulse valve to clean dust automatically, has high dust remove rate over 99.5%.

pulse dust collectorAdvantage of pulse dust collector

Besides, the machine can be equipped with PLC control system, which is working fully automatically. The labor required is few.

If you have interest to know more about waste aluminum plastic composite panel recycling plant, welcome to contact us DOING at any time!
