copper wire granulator machine

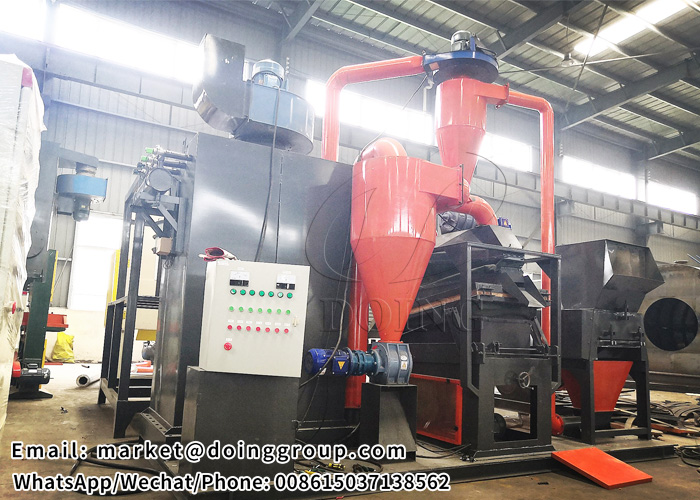

Copper wire granulator separator recycling machine


Copper wire granulator separator recycling machine is used to recycle a variety of wires and cables such as electrical wires, single core or double core rubber insulated lead sheathed and armored cable, HV insulation cables ,coaxial, extruded, or magnet/enamel wire or cable. All of them can be easily stripped. Our copper wire granulator separator recycling machine separate the copper and plastic with high efficiency also with high purity.
copper wire separator machine
Copper wire granulator separator recycling machine

Raw materials of the Copper wire granulator separator recycling machine used for the wire diameter in 0.3 mm Φ 20 mm, such as automobile wire or car bottom wire, motorcycle wire, computer wire and communication cable, etc
copper wire separator

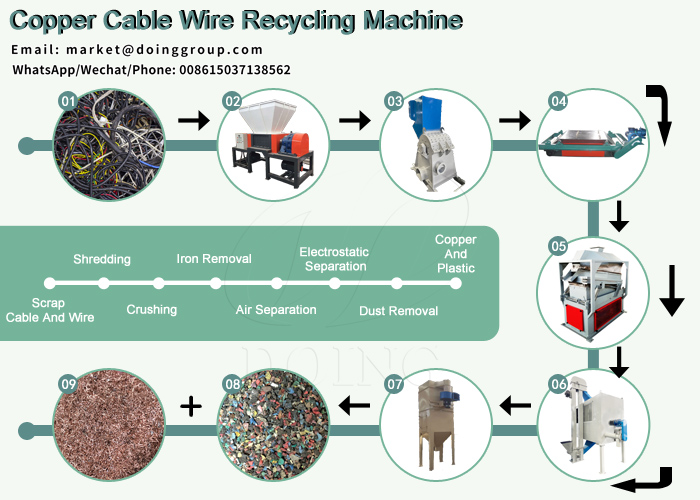

Copper wire granulator separator recycling machine working process

1. Starting

Please make sure Copper wire granulator separator recycling machineand another equipments are in good condition. Then start the machine, and keep the machine running unloaded for 5-10 minutes before feeding.

Attention:

Boot sequence: suction fan1→suction fan 2→blower-feeding blower →riddler→mainframe.

Shutdown sequence: Riddler→blower→suction fan1→suction fan 2→feeding blower→mainframe

2. Feeding

Before feeding, pick up the debris especially the iron from the wires in case of the damage to the crusher blades. During the feeding period, the feeding speed should be in accordance with the crushing speed.

3. Fine crushing

If there is any abnormal noise, please stop and check the crusher, or change different size screen.


If there is too much copper or the produced particles are relatively small during the production process, replace the screen and adjust the distance between the fixed knife and the moving one.If the machine is easy to overheat, stop the device and inspect the gearing.

4.Vibrating separator

After crushed, the mixed material will be delivered to vibrating device. The copper from vibrating separator is complete copper without plastic, while the copper clad from the opposite discharging hole needs the second crushing.
