copper wire recycling machine

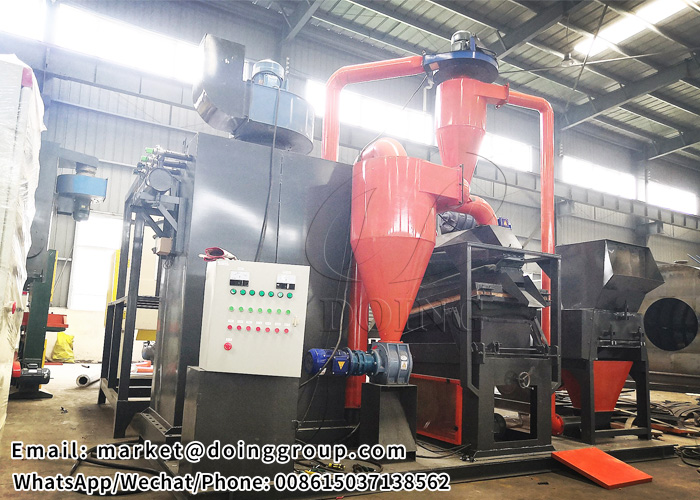

Copper wire recycling machine


Brief introduction of copper wire recycling machine

Copper wire recycling machine (also named waste copper wire/cable recycling machine) is a kind of machinery used for recycling waste & scrap copper wire and cables to get copper granulator and plastic, which is popular in America, Europe, Australia, Canada and other advanced countries.

Copper wire recycling machine is specializing in all kinds of cables and wires of diameter below 20mm, such as automobile wire, communication cable,telephone wires, computer wires and other mixed copper wires which cannot be processed by cable stripper machine.

copper wire recycling machine
Copper wire recycling machine

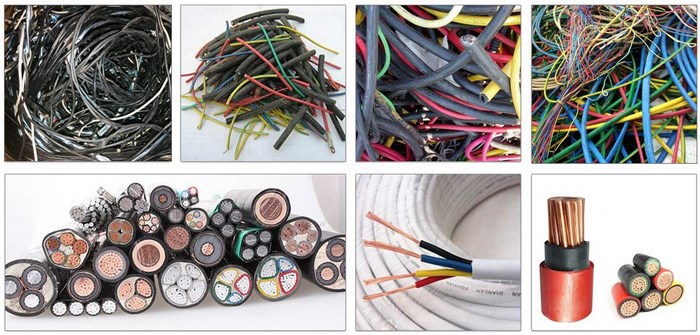

Raw materials  of copper wire recycling machine

copper wire recycling machine

Copper wire recycling machine  raw material

Separation methods of copper wire recycling machine
wire recycling machine
Copper wire recycling machine

1). Dry-type waste copper wire recycling machine : The so-called dry-type waste copper wire recycling machine uses a separation method without adding water during separating and selecting process. This kind of copper-wire crusher uses the machine with an environment-friendly separation method, such as air flow separator, air shaking table or electrostatic separator. The main technological process is: crushing-air flow separating and selecting-(electrostatic separation)-dust collection (electrostatic separation rarely used on copper-wire crusher now).

2.) Wet-type separation: The wet-type separation is a relatively traditional method. This separation method is mainly from mineral separation. For wet-type separation, the gravity shaking separation is mainly used. Its technological process is: crushing (adding water)-gravity shaking separation (adding water). Since water is used during this process of production, in general, it causes little seconda



Copper wire recycling machine recycling copper working  process
copper wire recycling machine

Copper wire recycling machine recycling copper working  process
When directly put into the copper wire recycling machine, used cable is cut into granules first, during this process, copper and plastic is separated but mixed together, then the granules are sent to vibration device for separation, through wind blow and vibration, the copper and plasticis are separated, then pure copper comes out fromone side and pure plastic comes out from the other side, we collect the separated pure copper and non-meatal.


Technical Data of copper wire recycling machine


Model  Voltage  Power  Capacity Dimension    Weight
DYTM-400   380V    22.45 kw    150-200kg/H      2700*1900*2300(mm)   1200kg
DYTM-600 380V  36 kw 300-400kg/H 3500*1900*2700(mm) 3000kg
DYTM-800 380V  75 kw 500-600kg/H 5500*4500*3300(mm) 8000k

 Main features of copper wire recycling machine

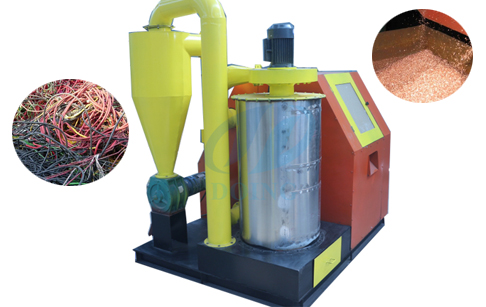

copper recycling machine
Copper wire recycling machine
1. Put the waste wire/cable directly into the copper  wire recycling machine! No matter twisted or tangled together.

2. High efficiency, 99% recycling rate. It can recycle copper and plastic at the same time.

3. Energy saving. It consumes less energy compared with the same products.

4. Environmental friendly: no water needed and no air pollution! All the dust is collected.

5. Easy operation: easy installation, devices are fixed on the bottom board, easy to move or transport.

6. One man operation.

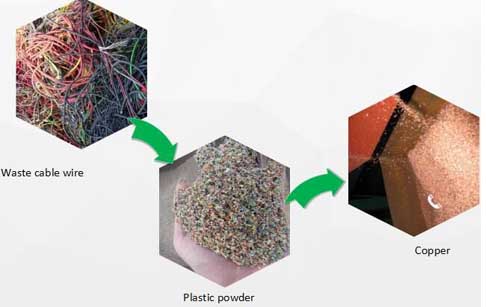

Final product of copper wire recycling machine
copper wire recycling machine
Copper wire recycling machine final product
