Copper wire granulator for sale
copper wire recycling machine
Copper wire granulator for sale
During the past decade, strong growth in emerging economies, coupled with an increased use of copper for innovative technologies,has led to significantly higher demand. The recovery and recycling of copper is not only important in helping to satisfy this demand,  it also conserves natural resources for a sustainable future, and improves the sustainability performance of end-use products。
copper is one of the few materials that can be recycled and re-used, again and again, without any loss in performance. There is also no difference in the quality of recycled copper

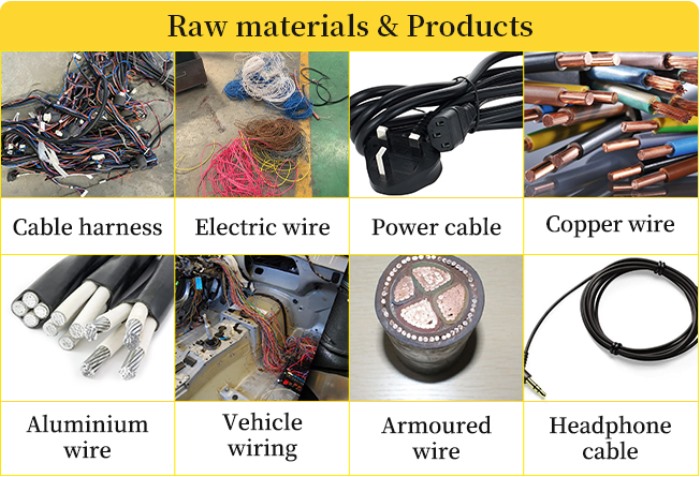

Copper wire granulator for sale raw material

copper wire recycling machine
Raw material of Copper wire granulator for sale


Henan Doing produced Copper wire granulator  are mainly used to recycle all kinds of waste cable wires, the raw materials will be separated into tiny copper rice and PVC, the applicable range of the wires diameter from 0.3 mm to 20 mm, such as automobile electrical route, car bottom lines, motorcycle electric line, computer case line and communication cable, etc.

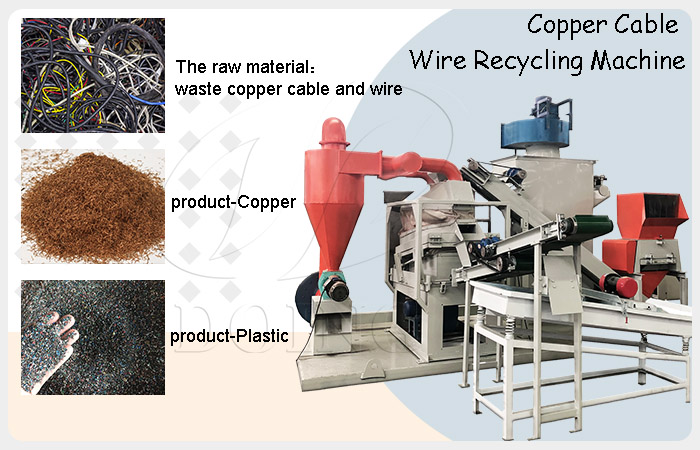

Copper wire granulator working processing

copper wire recycling machine
Working processing of Copper wire granulator
The cable wires raw materials will be firstly put into the crusher, after crushing, our pulse air separator machine will make the copper and plastic suspended on the screen. Then it can separate the copper from the plastic by weighting method and the friction force which produced by the Surface of the mesh. To improve the purity and capacity, the rest materials will be go into our high voltage electrostatic separator. This model system including the first crusher, pulse air separator, dust and fiber collection system and high voltage electrostatic separator。

Copper wire granulator  technical data



Item Model Capacity(kg/h) Power(Kw) Size (m)(L*W*H) Weight(T) Remark
1 DY-400 100-200 28.5 3.5×1.5×3.0 1.8
2 DY-600 300-500 36.5 4.0×1.7×3.0 3.0
3 DY-800 500-800 90.0 4.5×1.5×4.2 7.7 Doubling crushing system
4 DY-1000 800-1000 104.2 4.8×1.8×4.2 9.4 Doubling crushing system

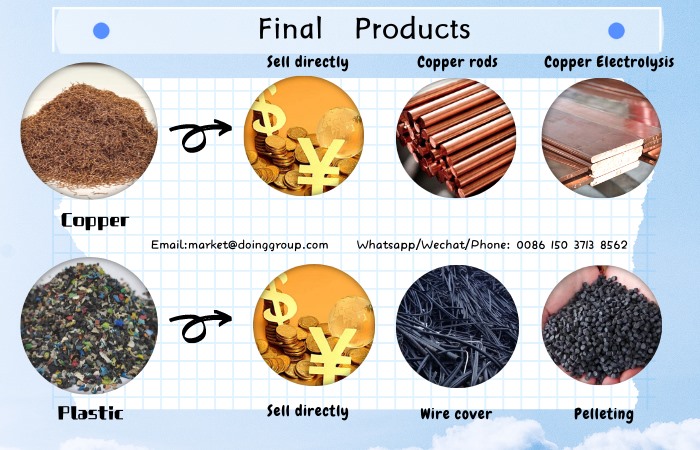

Copper wire granulator final product
copper wire recycling machine
The final product of Copper wire granulator
