Copper wire stripper for sale


Copper wire stripper for sale running video

Copper wire stripper for sale is a kind of machinery used for recycling waste & scrap copper wire and cables.

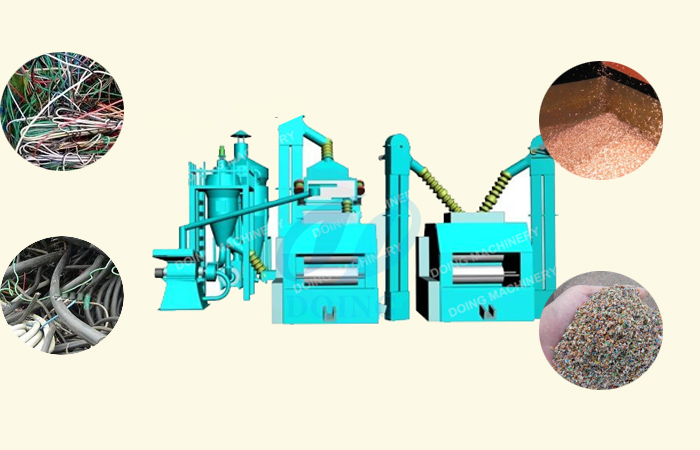

Copper wire stripper for sale
Copper wire stripper for sale

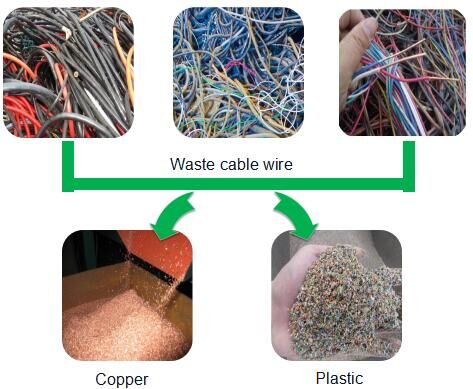

Copper wire stripper for sale raw material

 Copper wire stripper for sale can application to : auto electric wire, Motorcycle electric wire, Computer wire and other various miscellaneous material cables, communication cables, etc.
Copper wire stripper for sale
Copper wire stripper for sale raw material
Copper wire stripper for sale raw feature


1. Suitable structure and layout, easy to install.
    2. PLC system makes it easier to control the whole line, convenient to feed and operate.
    3.The design of separator and dust collector is handy for movement or transport.
    4.The rotor of the grinder is alternating, leading to more efficiency, faster discharging, lower noise and more steady running.
    5. The separation rate of air separator can reach at least 99%.
    6.Feedback system will do the second crushing to the unfinished material, which guarantee the totally separation of metal and non-metal.
   7. Dust-collector can prevent the leak of dust, the dust-cleaning rate can reach 99.99%
Copper wire stripper for sale
                                                                       Copper wire stripper for sale

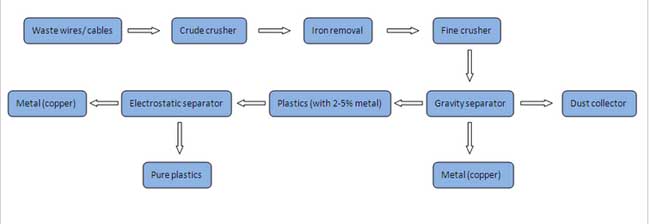

Working process of copper wire stripper for sale
copper wire recycling machine

When directly put the wase copper wire into the copper wire stripper for sale, waste copper wire cable is cut into granules first, during this process, copper and plastic is separated but mixed together, then the granules are sent to vibration device for separation, through wind blow and vibration, the copper and plasticis are separated, then pure copper comes out fromone side and pure plastic comes out from the other side, we collect the separated pure copper and plastic.

Copper wire stripper for sale technical data


Item Model Capacity(kg/h) Power(Kw) Size (m)(L*W*H) Weight(T) Remark
1 DY-400 100-200 28.5 3.5×1.5×3.0 1.8
2 DY-600 300-500 36.5 4.0×1.7×3.0 3.0
3 DY-800 500-800 90.0 4.5×1.5×4.2 7.7 Doubling crushing system
4 DY-1000 800-1000 104.2 4.8×1.8×4.2 9.4 Doubling crushing system
