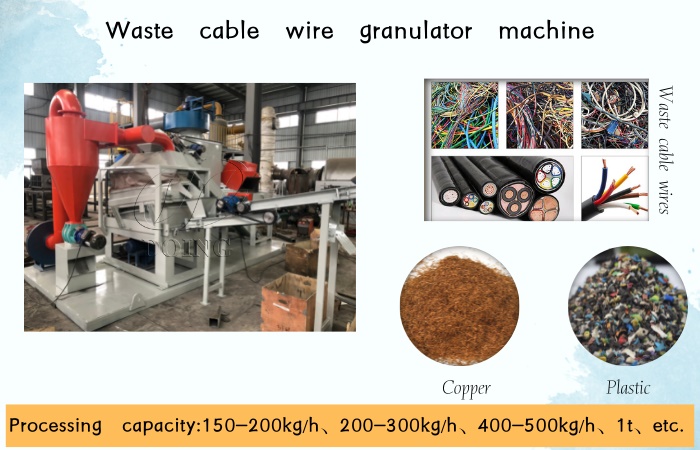

Scrap copper wire recycling machine

Introduction of scrap copper wire recycling machine:

Scrap copper wire recycling machine, also known as waste cable wire recycling machine, is mainly used for processing waste copper wire, aluminum wire decomposition to separate copper from plastic. Because of the separated copper particles looks like the grain of rice, so it is also called copper wire granulator machine.

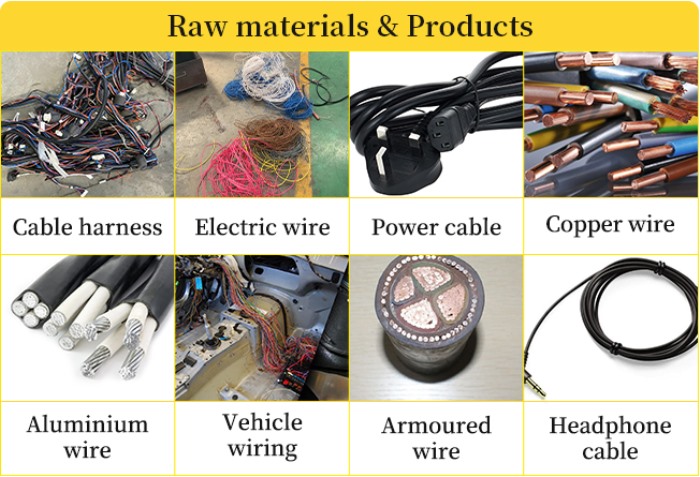

Raw material of scrap copper wire recycling machine:

Different waste cables and wires

Scrap copper wire recycling machine application to all kinds of cables and wires, such as auto-wires, communicate cables, telephone wires, computer wires and other mixed copper wires/cables. In addition, aluminium wires can also be processed by scrap copper wire recycling machine.

Working video of scrap copper wire recycling machine:

Main parts of scrap copper wire recycling machine:

1. Double-shaft shredder:

The double-shaft shredder of scrap copper wire recycling machine is used to shred to waste cables and wires into small pieces. It is made of H13 alloy materials, which has high hardness and toughness and can be used for a long time than other shredder.

2. Blade crusher:

The blade of blade crusher is SKD-11 of HRC58, which has high hardness&toughness and high wear resistance.

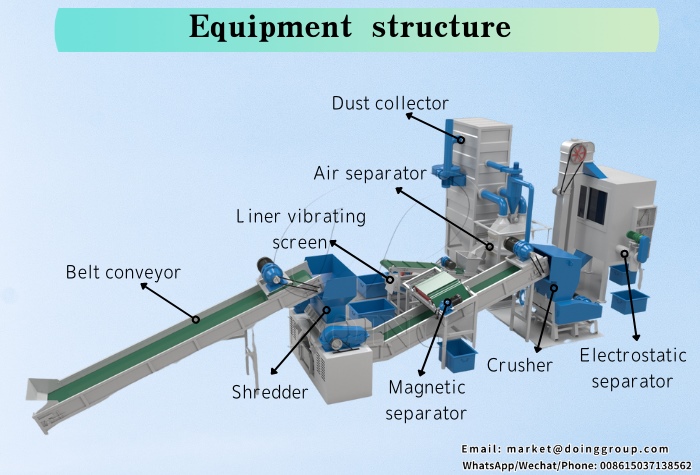

Scrap copper wire recycling machine structure

3. Air separator:

Air separator adopts Italian air suspension principle, which can separate copper from plastic with the separating rate of 97%-98%. And it is very easy to operate with variable frequency control knob.

4. Electrostatic separator:

Electrostatic separator uses high voltage electrostatic separation technology to separate metals from non-metals with the separating rate of 99%. In addition, it also adopts spiral discharge, and the material is not easy to block.

Technical data of Scrap copper wire recycling machine:

Type of scrap copper wire recycling machine:

There are two types scrap copper wire recycling machine: wet type scrap copper wire recycling machine and dry type scrap copper wire recycling machine.

Differences between of wet and dry type scrap copper wire recycling machine:

1. Separating method:

Wet type scrap copper wire recycling machine separates copper from plastic through crushing and water separation, which will cause water pollution.

Dry type scrap copper wire recycling machine adopts physical separation method to process waste cables and wires, which uses no water, fire or chemical solution, thus do no harm to environment.

2. Separating rate:

Dry type scrap copper wire recycling machine can separate copper from plastic with the separating rate of 99%. While, wet type scrap copper wire recycling machine can't separate the fine copper from plastic, because the separated materials are wet. The separating rate is a little lower than dry type scrap copper wire recycling machine.

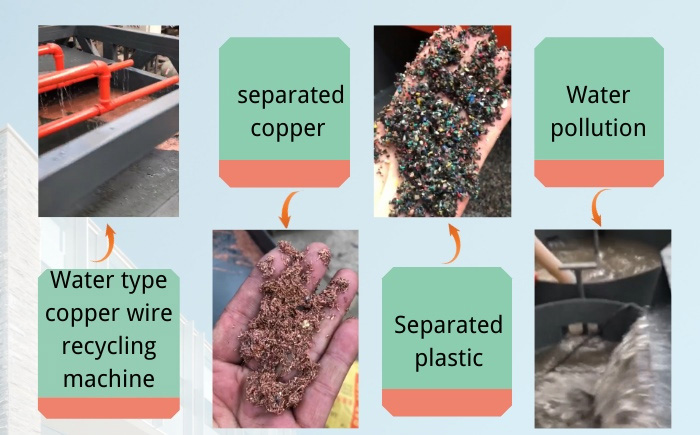

Wet type scrap copper wire recycling machine

3. Final products price:

The copper separated by dry type scrap copper wire recycling machine has a bright color, high purity and quality, and can be sold at a very high price in the metal trading market. As for the separated copper of wet type scrap copper wire recycling machine, it must be dried in time, otherwise the copper will be oxidized and affect the price.

4. Land and labor cost:

The copper produced by wet type scrap copper wire recycling machine needs to be spread and dried manually, which requires more workers and a larger space. However, the copper separated by dry type scrap copper wire recycling machine doesn't need to be dried, and the machine is simple and easy to operate, requiring only 1 to 2 people.

Scrap copper wire recycling machine

Henan Doing Group is a professional dry type scrap copper wire recycling machinery manufacturer, with over 12 years experience. If you are interested in dry type scrap copper wire recycling machine, welcome to contact us.
