Henan Doing Mechanical Equipment Co.,Ltd
Specialized in waste recycling machinery for more than 10 years with professional team.

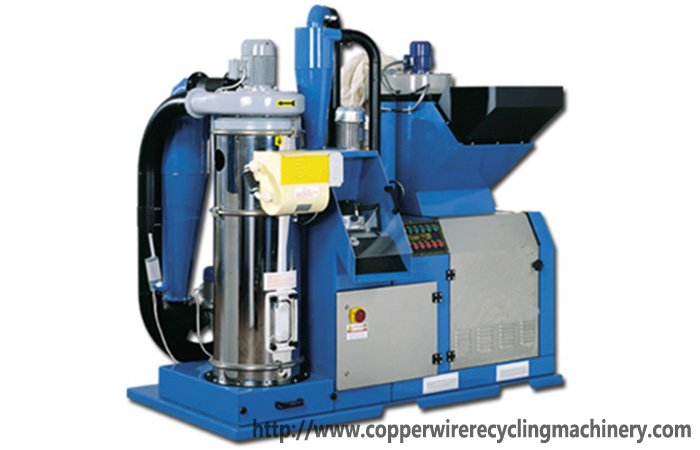

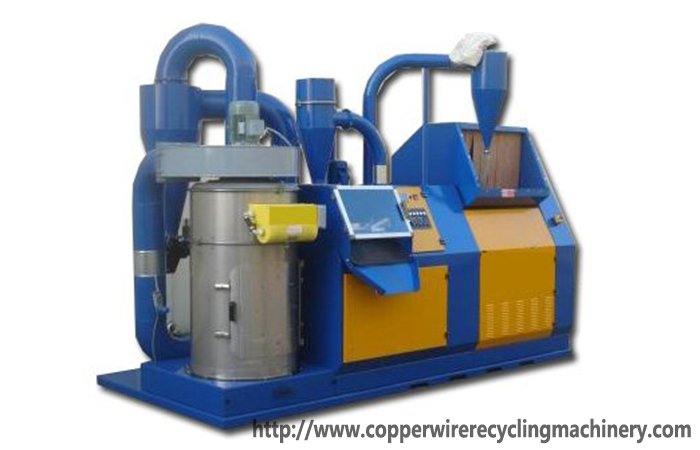

1.Aluminum composite panel recycling machine introduction Aluminum composite panel recycling machine  is the popular machine to recycling aluminum  ,such as aluminum composite panel,aluminum composite pipe ,aluminum plastic board ,waste medical blister,and others .it adopts an advanced technology that makes raw material to be the mixture of metal and plastic by crushing and pulverizing ,then separates aluminum  from plastic by high voltage electrostatic separator .in this methods ,the metal separating rate is high ,and there is no pollution in the whole production process

2.Aluminum composite panel recycling machine Characteristics Aluminum composite panel recycling machine is characterized by little noise, great output and high innovation. After separation, the original quality of copper remains and plastic is recovered to produce great economic benefit.

Aluminum composite panel recycling machine uses high pressure electrostatic separation technology to achieve a higher metal recovery (above 98%).

Aluminum composite panel recycling machine uses our self-owned triple dust collecting unit (triple dust collector), including three stages, cyclone, cloth-bag and air cleaner dust collectors, which can effectively solve the dust pollution problems.

3.Aluminum composite panel recycling machine advantage (1). Economic effect:
Save cost, this machine can provide above 99.9% waste wire recovery rate, thus, more wire can be
produced from limited resource with lower cost.

(2). Environmental effect:
No pollution, with strict process on pulverizing and separating, the dust can be collected effectively.
Compared with burning, this is better to environment.

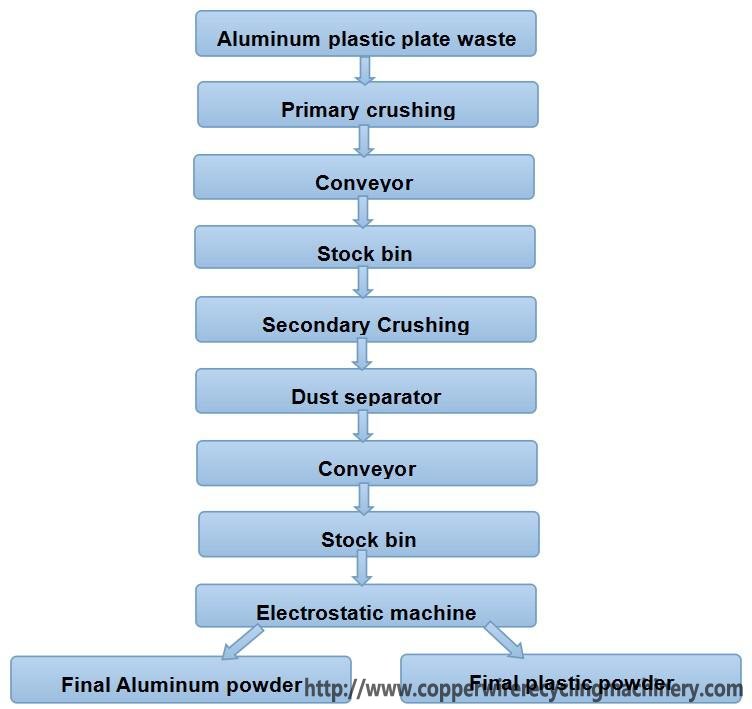

4.Aluminum composite panel recycling machine working process Aluminum composite panel recycling machine working put the raw material into crusher to crush the material into small pieces.
Then the screw conveyor delivers the pieces into All-in-one grinder to grind material into metal & plastic powder.
Then the bucket elevator delivers the powder mixture into electrostatic separator to separate the mixture powder into metal and plastic separately.
5.Aluminum composite panel recycling machine technical parameter

Model	Shape size(m)	Power(kw)	Capacity(kg/h)	Weight(t)
DYLS325-803	1.5X1.3X3.5	2.75	100-200	1.2
DYLS325-1103	1.8X1.5X3.6	3.95	200-300	2.0
DYLS325-1503	2.2X1.5X3.8	4.75	300-400	2.5
DYLS325-1803	2.5X1.5X3.8	4.75	400-500	3.0
DYLS325-2003	2.7X1.5X3.8	5	500-600	3.8
DYLS325-2503	3.2X1.5X3.8	6	600-800	4.5
DYLS325-2803	3.5X1.5X3.2	7.5	800-1000	5.2

---
