1.Introduction of Aluminum plastic composite panel

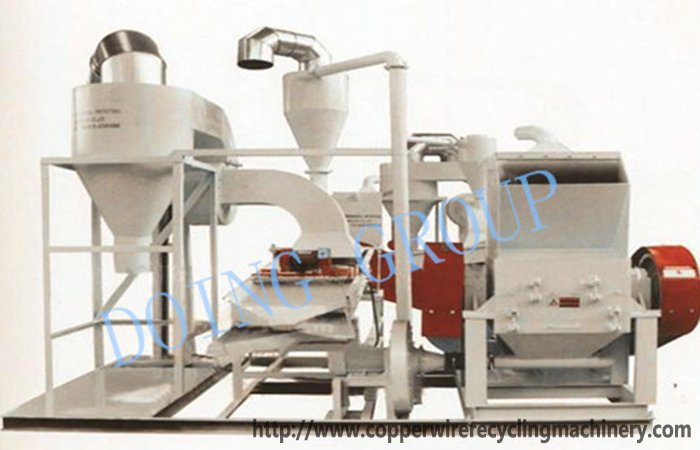

Aluminum plastic composite panel
Aluminum plastic composite panel is a high efficiency energy-saving product which is developed by our factory based on absorbing separation technology at home and abroad. With years of experimentation and theoretical analysis, this machine can reach the best separation effect. The ratio of impurities after separation will be less than 1%, the separation efficiency is up to 99%.
This aluminum plastic composite panel can process all kinds of aluminum plastic material. Such as medical blister, toothpaste tube, aluminum plastic composited panel, aluminum foil, etc.
2. Feature of Aluminum plastic composite panel
Aluminum plastic composite panel
1. capacity ranges: 3-10 tons per day.
2. applying to multiple raw mateial: separating conductor from non-conductor, metal from non-metal.
3. high separating efficiency: after electrostatic separating, the purity can reach to 99.9%.
4. low noise. no dust.
5. PLC control, single machine manual start + Whole plant One button start, one two operator needed for the full plant.
6. The new generation of turbine water mill, double cooling, to ensure that the plastic and aluminum pieces stripping more thoroughly;

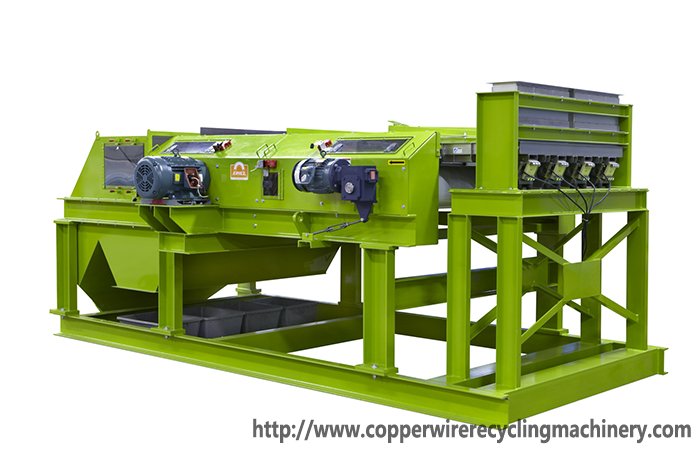

7. Using high pressure double roller electrostatic separation technology, to ensure that the separation rate is higher;
8. Complete with pulse dust removal equipment, to ensure operation workshop air cleaner.

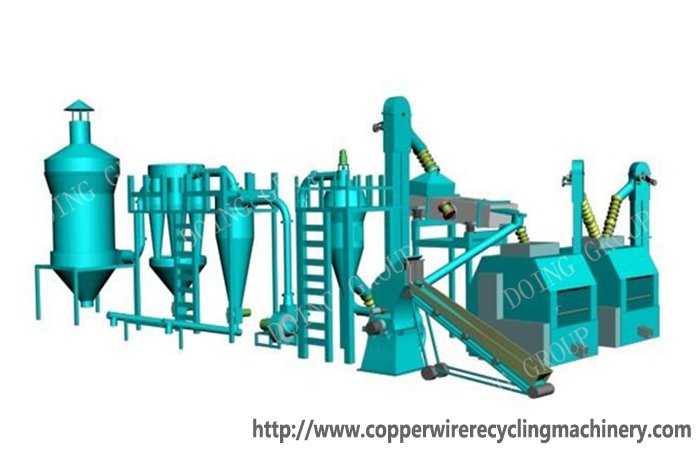

3.Working process of Aluminum plastic composite panel
Put the raw material into crusher to crush the material into small pieces.
Then the screw conveyor delivers the pieces into All-in-one grinder to grind material into metal & plastic powder.
Then the bucket elevator delivers the powder mixture into electrostatic separator to separate the mixture powder into metal and plastic separately.
4.Advantage of Aluminum plastic composite panel
Aluminum plastic composite panel
With this waste Aluminum plastic composite panel, the aluminum and plastic can be completely separated for comprehensive utilization and to achieve a higher economic benefit without dust and secondary pollution.
This Aluminum plastic composite panel uses our self-owned triple dust collecting unit (triple dust collector), including three stages, cyclone, cloth-bag and air cleaner dust collectors, which can effectively solve the dust pollution problems.
The Aluminum plastic composite panel is characterized by little noise, great output and high innovation. After separation, the original quality of aluminum remains and plastic is recovered to produce great economic benefit.
This waste Aluminum plastic composite panel uses high pressure electrostatic separation technology to achieve a higher metal recovery (above 98%).
5.Application of aluminum plastic composite panel
Aluminum plastic composite panel is applicable for all kinds of raw material such as: aluminum plastic composite panel (ACP) ,aluminum composite pipe , decorative mateiral , waste aluminum plastic windows ,waste aluminum foil ,medical blister , medicine wrapper .
6.Technical data of aluminum plastic composite panel
| Model |
Voltage |
Power |
Capacity |
Dimension |
Weight |
| DYLS-400 |
380V |
22.45 kw |
150-200kg/H |
2700*1900*2300(mm) |
1200kg |
| DYLS-600 |
380V |
36 kw |
300-400kg/H |
3500*1900*2700(mm) |
3000kg |
| DYLS-800 |
380V |
75 kw |
500-600kg/H |
5500*4500*3300(mm) |
8000k
|
