Aluminum plastic separating machine
Product Details of aluminum plastic separating machine:
Aluminum plastic separating machine /circuit board recycling machine/E waste recycling machine is our independent research new equipment. It is a kind of Eco-friendly equipment and solve the problem of more and more electronic wastes nowadays. It will turn the waste into fortune and create huge profit for you.
It can be widely used for separating various aluminum panels, waste aluminum plastic food bags, milk bags, toothpaste tubes, yogurt foil sealing lids, pharmaceutical blister foil, electrical circuit board, etc
Aluminum plastic separating machine
Features of aluminum plastic separating machine:
Aluminum plastic separating machine
1With the aluminum plastic separating machine, the copper and plastic can be completely separated for comprehensive utilization and to achieve a higher economic benefit and without dust and secondary pollution.
2. The metal and plastic separation and recycling can be completed under multicomputer controlled one time batch-feeding for crushing and automotive conveying, sound insulation and technology and cooling system.
3. Little noise, large output, innovative features. It can maintain the quality of the original aluminum besides recycle plastic. It can generate greater economic
benefits for you.
4. It adopts high voltage electrostatic separation technology, higher metal recoveries, metal recycling rate of 98%.
5. This device also uses a triple dust device developed by our company, this dust removal device is composed of three dust collector: Cyclone dust, dust bag and air purifiers dust, can effectively solve the problem of dust pollution.

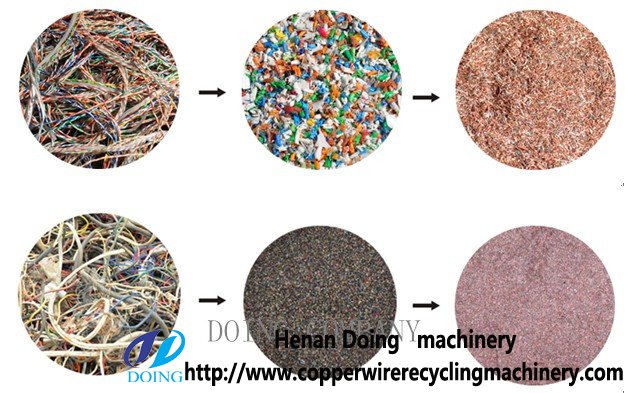

Raw materials of aluminum plastic separating machine
Working process of aluminum plastic separating machine
Advantages of aluminum plastic separating machine:
With this waste aluminum plastic separating machine, the aluminum and plastic can be completely separated for comprehensive utilization and to achieve a higher economic benefit without dust and secondary pollution.
This equipment uses our self-owned triple dust collecting unit (triple dust collector), including three stages, cyclone, cloth-bag and air cleaner dust collectors, which can effectively solve the dust pollution problems.
The equipment is characterized by little noise, great output and high innovation. After separation, the original quality of aluminum remains and plastic is recovered to produce great economic benefit.
This waste aluminum plastic recycling equipment (separator) uses high pressure electrostatic separation technology to achieve a higher metal recovery (above 98%).

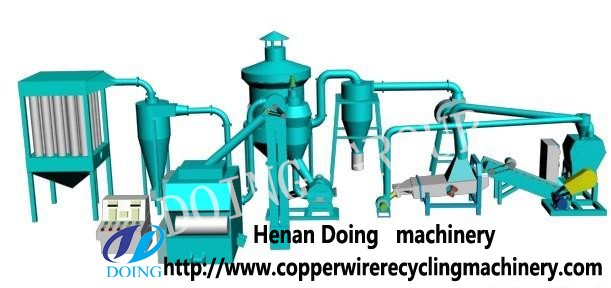

Flow chart of aluminum plastic separating machine
dddddddd
Flow chart of aluminum plastic separating machine
Technical Data of aluminum plastic separating machine
| Model | Voltage | Power | Capacity | Dimension | Weight |
| DYTM-400 | 380V | 22.45 kw | 150-200kg/H | 2700*1900*2300(mm) | 1200kg |
| DYTM-600 | 380V | 36 kw | 300-400kg/H | 3500*1900*2700(mm) | 3000kg |
| DYTM-800 | 380V | 75 kw | 500-600kg/H | 5500*4500*3300(mm) | 8000k |
