1.Cable recycling machine description

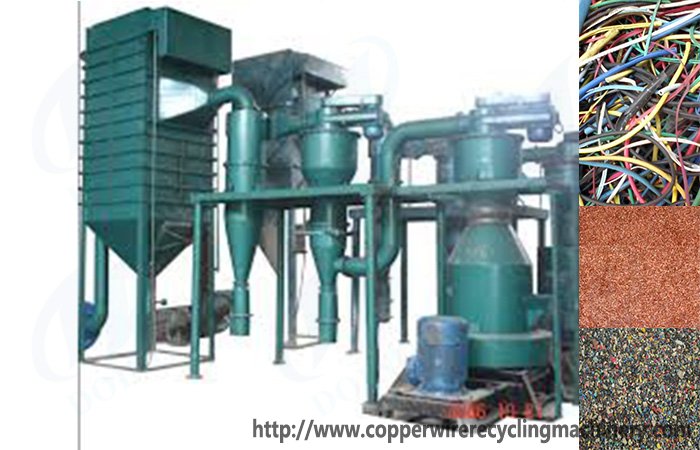

Cable recycling machine
Cable recycling machine , also called scrap electric wire and cable recycling equipment, copper wire separator, aluminium wire separator or electric wire reparator, and also can be used as PCB recycling machine, Printed Circuit Boards recycling equipment. Cable recycling machineis a kind of environmental protection machine used to recyle waste electric wire, copper wire, aluminium wire, metallic composite wires and sheathed lines.

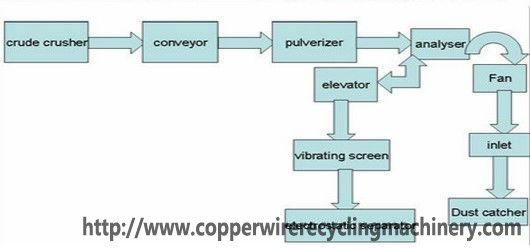

Through crude crushing, iron removal, fine crushing, gravity separation, electrostatic separation process to make completely dry and physical separation of scrap wires to get pure plastics and metal for double recycling and high benefit. Equipped with the electrostatic separator, it can make metal recovery rate get close to 100%.
2.Cable recycling machine feature
Cable recycling machine
1.Suitable structure and layout, easy to install
2.Using PLC control, uniform feed, intelligent operation, maximum guarantee machine 's stable work
3.The crusher adopts double roller,low speed, high tear produces big output while little noise
4. The design of separator and dust collector is handy for movement or transport
5.The rotor of the grinder is alternating,leading to more efficiency,faster discharging,lower noise and more steady running
6.The separation rate of air separator can reach at least 99%
3.Cable recycling machine working process

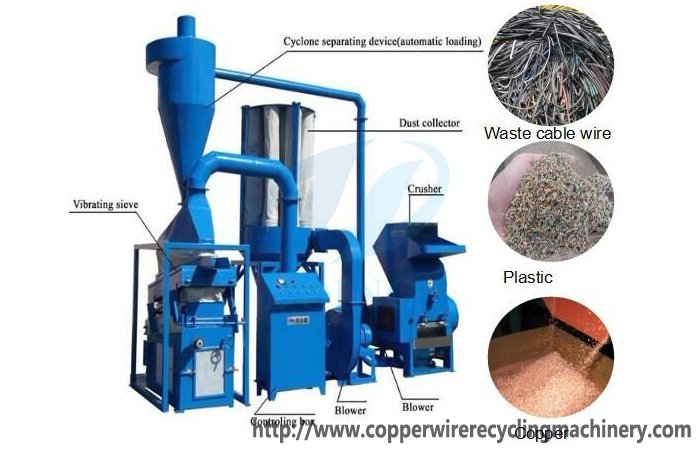

When directly put raw material into the cable recycling machine, used cable is cut into granules first, during this process, copper and plastic is separated but mixed together, then the granules are sent to vibration device for separation, through wind blow and vibration, the copper and plasticis are separated, then pure copper comes out fromone side and pure plastic comes out from the other side, we collect the separated pure copper and plastic.
4.Cable recycling machine raw material
For our cable recycling machine , please check the available raw materials as below:

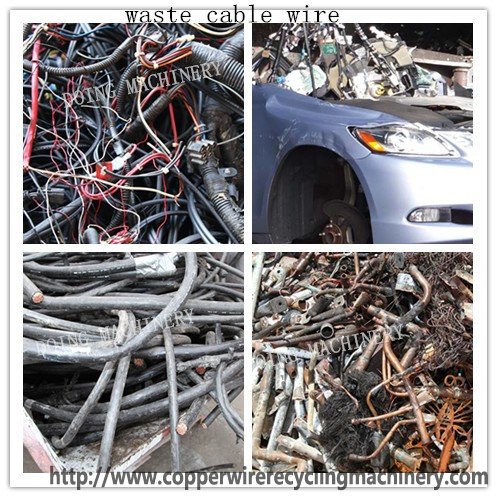

- All kinds of scrap wires, cable wire, aluminium wire, such as automobile electric line, motorcycle electric line, storage battery electric line, waste household appliance disassembly electric line, electromechanical equipment disassembly electric line, computer cable, telephone wire, cable TV line, communication cable and other scrap wires which are difficult to recycle, circuit board, copper-clad plate, etc

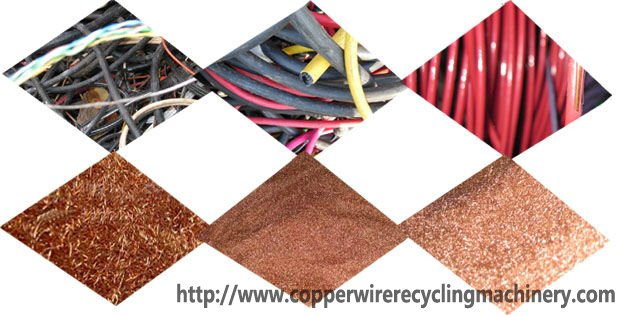

5.Cable recycling machine final product
