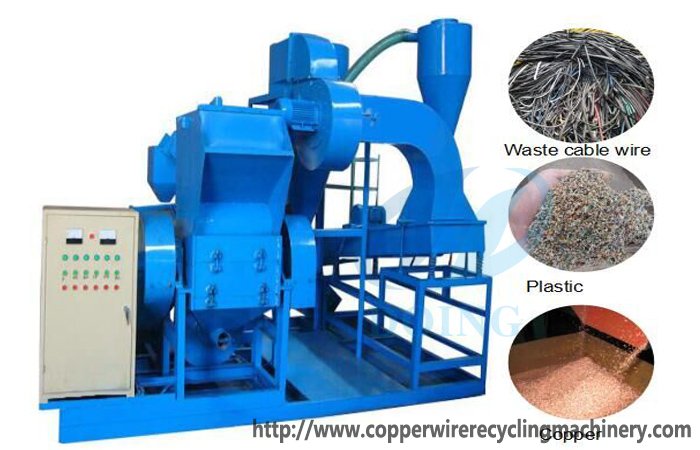

Copper wire recycling machine
Brief introduction of copper wire recycling machine
Copper wire recycling machine (also named waste copper wire/cable recycling machine) is a kind of machinery used for recycling waste & scrap copper wire and cables to get copper granulator and plastic, which is popular in America, Europe, Australia, Canada and other advanced countries.
Copper wire recycling machine is specializing in all kinds of cables and wires of diameter below 20mm, such as automobile wire, communication cable,telephone wires, computer wires and other mixed copper wires which cannot be processed by cable stripper machine.
Copper wire recycling machine

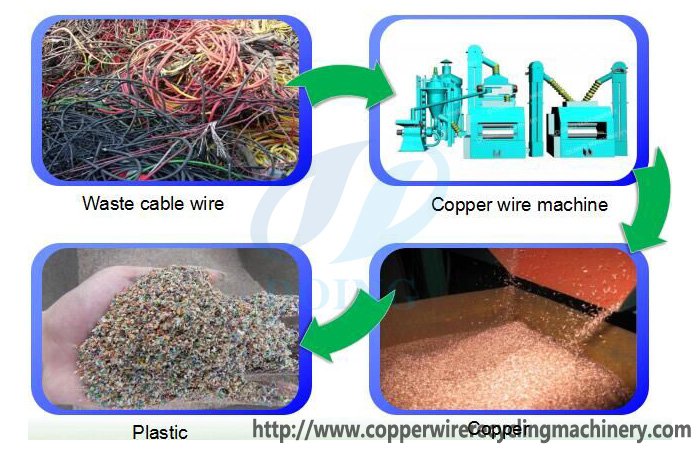

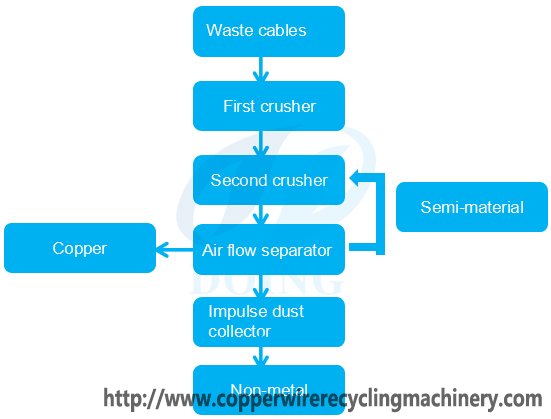

Working principle of copper wire recycling machine
When directly put into the copper wire recycling machine, used cable is cut into granules first, during this process, copper and plastic is separated but mixed together, then the granules are sent to vibration device for separation, through wind blow and vibration, the copper and plasticis are separated, then pure copper comes out fromone side and pure plastic comes out from the other side, we collect the separated pure copper and non-meatal.
Technical Data of copper wire recycling machine
|
Model |
Voltage |
Power |
Capacity |
Dimension |
Weight |
|
DYTM-400 |
380V |
22.45 kw |
150-200kg/H |
2700*1900*2300(mm) |
1200kg |
|
DYTM-600 |
380V |
36 kw |
300-400kg/H |
3500*1900*2700(mm) |
3000kg |
|
DYTM-800 |
380V |
75 kw |
500-600kg/H |
5500*4500*3300(mm) |
8000k |

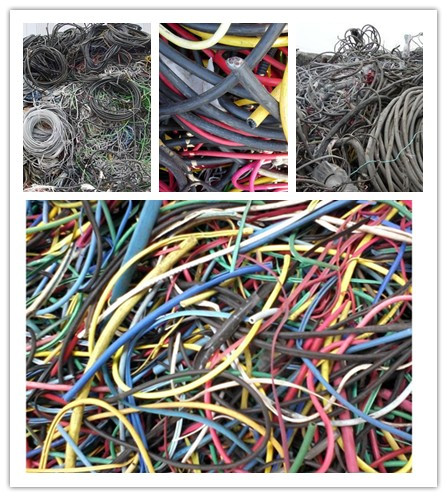

Raw materials of copper wire recycling machine
Raw material of copper wire recycling machine

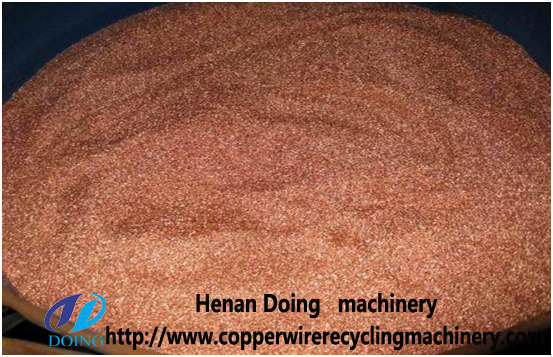

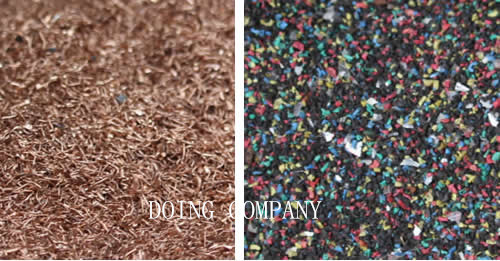

Final products of copper wire recycling mahcine
Final products of copper wire recycling machine
Main features of copper wire recycling machine
1. Put the waste wire/cable directly into the cable wire recycling machine! No matter twisted or tangled together.
2. High efficiency, 99% recycling rate. It can recycle copper and plastic at the same time.
3. Energy saving. It consumes less energy compared with the same products.
4. Environmental friendly: no water needed and no air pollution! All the dust is collected.
5. Easy operation: easy installation, devices are fixed on the bottom board, easy to move or transport.
6. One man operation.
