1.Copper wire recycling machine introduction

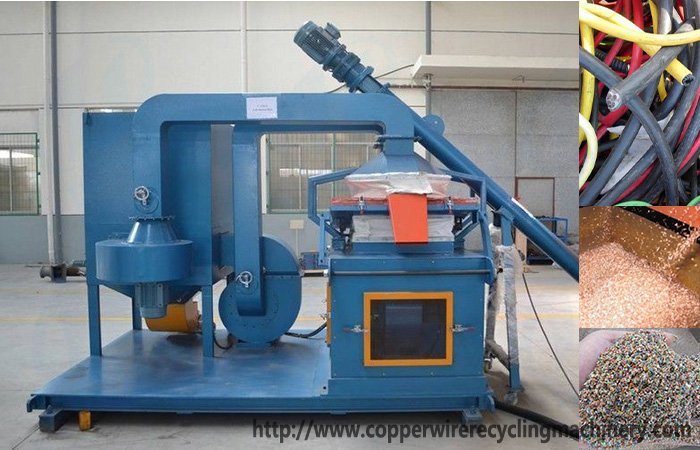

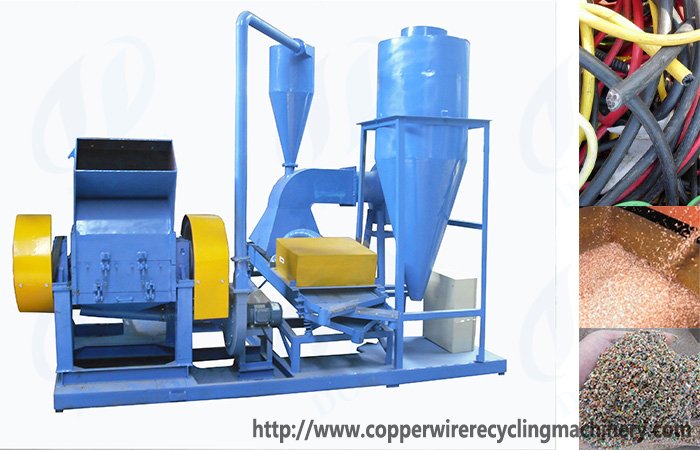

copper wire recycling machine
Our copper wire recycling machine is composed of the grinding host machine, air flow sorting andcollecting system and shaking parts and final dust collection bag or cyclone; it is combination structure; its main work theory is to sort and collect the copper via dry production without any wateradopts environmental protection way to recycle the scrap or abandoned wire copper.
3. Copper wire recycling machine feature
copper wire recycling machine
1). PLC control, intelligent operation, and uniform feeding;
2). Automatic mechanic separation, complete sorting of the copper and plastic
3). No dust or ash in the air when production and non-pollution;
4). Modular structure is easy to delivery and installation;
5). Copper wirerecycling machine is double roller type, low rotating speed but large reverse space, high capacity but low noise, and simple operation;
3. Copper wire recycling machine application

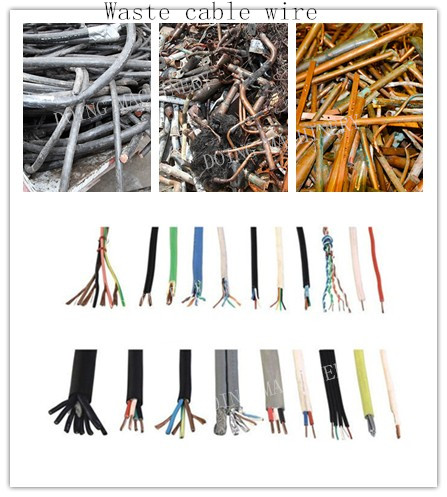

Our copper wire recycling machine has wide application such as: scrap automotive or old vessel
circuitry, telecommunication cable wire, kinds of civil wires, computer or laptops circuitry or wire,
abandoned or junk wires or cable, other PE plastic materials etc;
4.Our copper wire recycling machine includes
1.Rough crushing machine
2.Convey and remove metal magnetic conveyor
3.Fine grinding parts
4. Convey to rough sorting machine
5.Air blow to air separator
6.Static electricity collecting system
5.Copper wire recycling machine Effectiveness
(1)Economic effect: by reusing these wires, this machine can provideabove 99% recoveryrate and produce more wire from limited resource with lower cost.Therefore, user’s economic burden can be reduced.
(2) Environmental effect: with strict process from pulverization,selection to dust collection, it is more effective than other methods like burning and alike.
6.Copper wire recycling machine technical parameter
|
Model |
Shape size(m) |
Power(kw) |
Capacity(kg/h) |
Weight(t) |
|
DYTM325-803 |
1.5X1.3X3.5 |
2.75 |
100-200 |
1.2 |
|
DYTM325-1103 |
1.8X1.5X3.6 |
3.95 |
200-300 |
2.0 |
|
DYTM325-1503 |
2.2X1.5X3.8 |
4.75 |
300-400 |
2.5 |
|
DYTM325-1803 |
2.5X1.5X3.8 |
4.75 |
400-500 |
3.0 |
|
DYTM325-2003 |
2.7X1.5X3.8 |
5 |
500-600 |
3.8 |
|
DYTM325-2503 |
3.2X1.5X3.8 |
6 |
600-800 |
4.5 |
|
DYTM325-2803 |
3.5X1.5X3.2 |
7.5 |
800-1000 |
5.2 |
