Henan Doing Mechanical Equipment Co.,Ltd
Specialized in waste recycling machinery for more than 10 years with professional team.

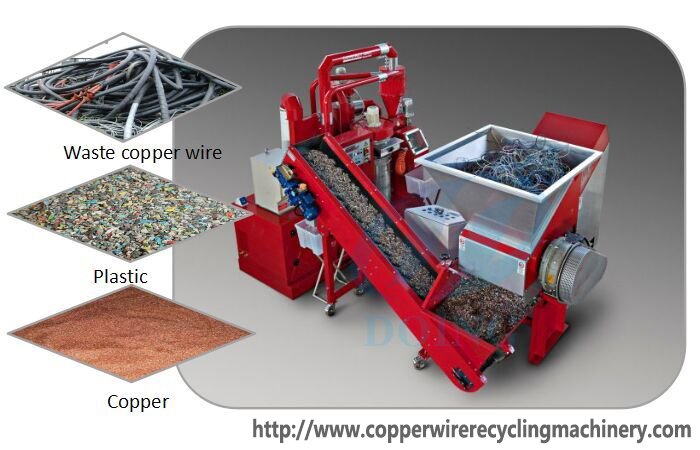

Copper wire recycling machine During the past decade, strong growth in emerging economies, coupled with an increased use of copper for innovative technologies,has led to significantly higher demand. The recovery and recycling of copper is not only important in helping to satisfy this demand,  it also conserves natural resources for a sustainable future, and improves the sustainability performance of end-use products。
copper is one of the few materials that can be recycled and re-used, again and again, without any loss in performance. There is also no difference in the quality of recycled copper

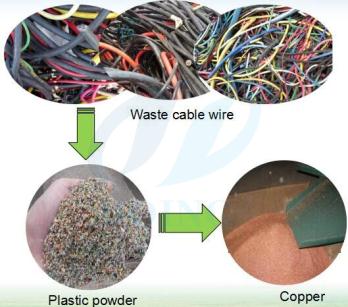

Copper wire recycling machine raw material
Henan Doing produced copper wire recycling machine are mainly used to recycle all kinds of waste cable wires, the raw materials will be separated into tiny copper rice and PVC, the applicable range of the wires diameter from 0.3 mm to 20 mm, such as automobile electrical route, car bottom lines, motorcycle electric line, computer case line and communication cable, etc.

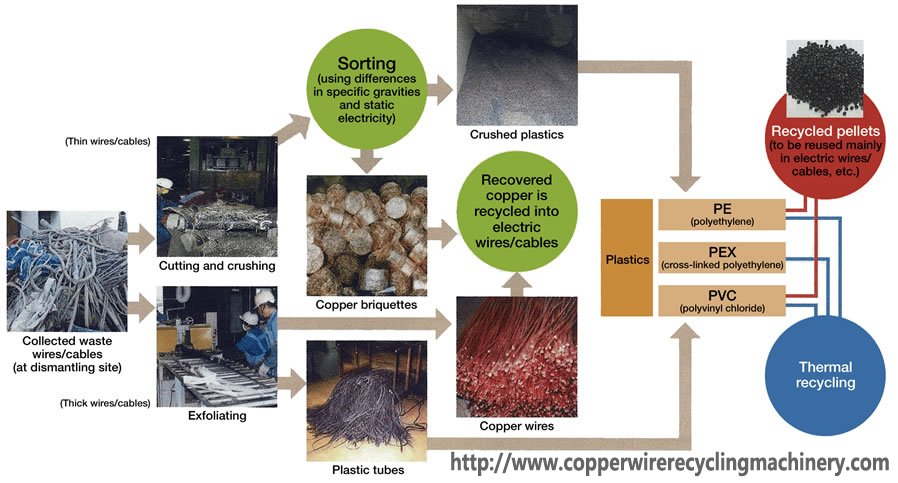

Copper wire recycling machine working processing
The cable wires raw materials will be firstly put into the crusher, after crushing, our pulse air separator machine will make the copper and plastic suspended on the screen. Then it can separate the copper from the plastic by weighting method and the friction force which produced by the Surface of the mesh. To improve the purity and capacity, the rest materials will be go into our high voltage electrostatic separator. This model system including the first crusher, pulse air separator, dust and fiber collection system and high voltage electrostatic separator。
Copper wire recycling machine  technical data

Item	Model	Capacity(kg/h)	Power(Kw)	Size (m)(L*W*H)	Weight(T)	Remark
1	DY-400	100-200	28.5	3.5×1.5×3.0	1.8
2	DY-600	300-500	36.5	4.0×1.7×3.0	3.0
3	DY-800	500-800	90.0	4.5×1.5×4.2	7.7	Doubling crushing system
4	DY-1000	800-1000	104.2	4.8×1.8×4.2	9.4	Doubling crushing system

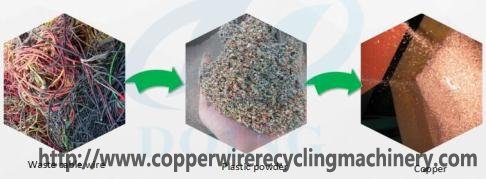

Copper wire recycling machine final product

---
