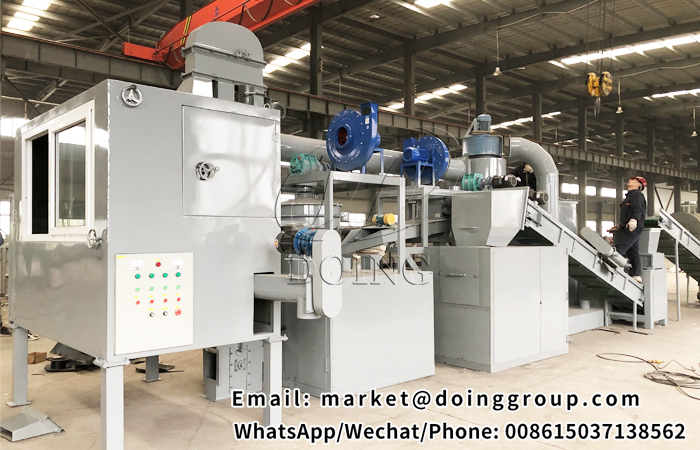

Circuit board recycling equipment introduction
circuit board recycling
                                 Circuit board recycling equipment
Circuit board recycling equipment that PCB separator separator, circuit boards, electronic equipment, garbage disposal is to exist in the electric equipment such as TV, computer, the circuit board containing copper, tin, aluminum and other metal and non-metallic decomposition process of separation.Waste circuit board including waste copper clad (CCL), waste printed circuit board (PCB), with integrated circuits and electronic components printed circuit boards (commonly known as the waste printed circuit board).

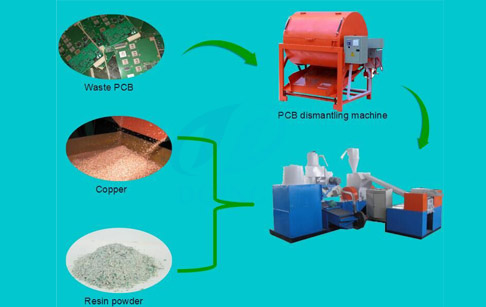

Circuit board recycling equipment  work principle
pcb recycling
Circuit board recycling equipment
Circuit board recycling equipment is separating the scrap circuit boards and dismantling decomposition into metal and nonmetal a set of processes.With the circuit boards of electronic components, after take off tin, dismantling, remove the components (component classification after processing), respectively.Circuit board by coarse crushing, in addition to iron, finely finished metal and nonmetallic dissociation, forming the mixture of metal and nonmetal, into the air density screen, put most of the metals.Air proportion screening out the circuit boards of fiber powder contains a small amount of fine metal content (about 2-5%), and then into the electrostatic separator, the rest of the small metal extracted, maximum metal recovery (nearly 100%).

 Circuit board recycling equipment Technical parameter


Model   Voltage   Power   Capacity  Dimension     Weight
DYTM-400    380V     22.45 kw     150-200kg/H       2700*1900*2300(mm)    1200kg
DYTM-600  380V   36 kw  300-400kg/H  3500*1900*2700(mm)  3000kg
DYTM-800  380V   75 kw  500-600kg/H  5500*4500*3300(mm)  8000k

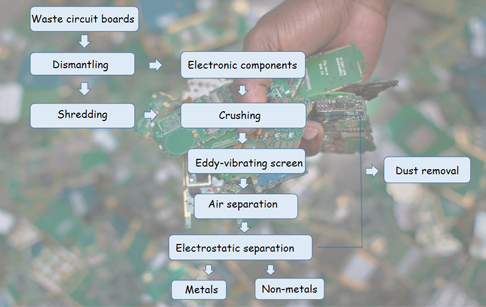

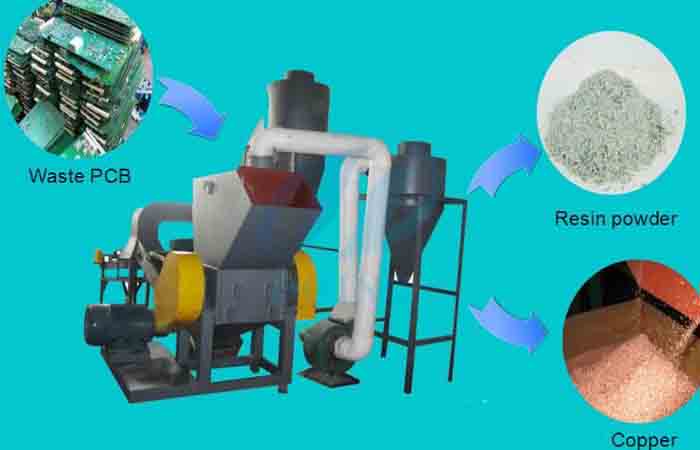

 Circuit board recycling equipment working process


Circuit board recycling equipment

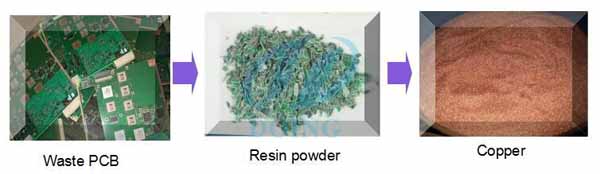

Circuit board recycling equipment final product
circuit board recycling
Circuit board recycling equipment final product
