Advantages of waste circuit board recycling machine
Advantages of waste circuit board recycling machine
The grinder mill is very wear-resisting.
The high voltage electrostatic system is centralized control, the equipment is very flexible.
The separator rate and the purity is very high,the separator rate can reached 99.99%.
Small power and less power consumption.
A high degree of automation, covers less area.
This set of waste circuit board recycling machine belong to dry recycling,smll noisy and no pollution.
Perfect after sale service system,the 12 months warranty,free replacement parts,lifelong supply the parts in duty.

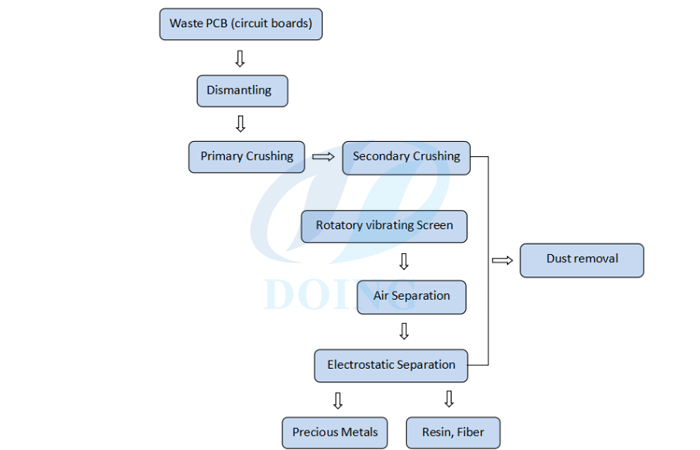

Working Principle of waste circuit board recycling machine

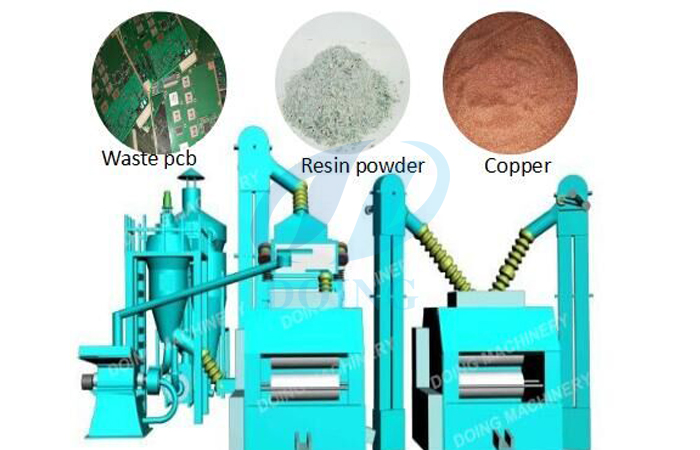

Circuit board recycling machine(high voltage electrostatic separation type) adopts a process route that makes raw materials such as printed circuit boards to be a mixture of metal and resin fiber powder by dry crushing and pulverization and then separates the metals from the non-metal materials such as resin by high voltage electrostatic separator. To avoid dust pollution in the process, the equipment also uses the three-in-one dust removal equipment independently developed by the Doing company. This dust removal equipment has three-stage dust removal: cyclone dust removal, bag dust removal and dust removal by air cleaner. All of these effectively solve the problem of dust pollution with every index up to the national standard .
Application of waste circuit board recycling machine
Waste circuit board recycling machine application
♥. 1. waste circuit board
♥. 2. computer boards
♥. 3. TV boards
♥. 4. aluminum-plastic panels
♥. 5. copper-coated plates
♥. 6. printed circuit boards,ect
Main data of waste circuit board recycling machine
|
Model |
Voltage |
Power |
Capacity |
Dimension |
Weight |
|
DYTM-400 |
380V |
22.45 kw |
150-200kg/H |
2700*1900*2300(mm) |
1200kg |
|
DYTM-600 |
380V |
36 kw |
300-400kg/H |
3500*1900*2700(mm) |
3000kg |
|
DYTM-800 |
380V |
75 kw |
500-600kg/H |
5500*4500*3300(mm) |
8000k |

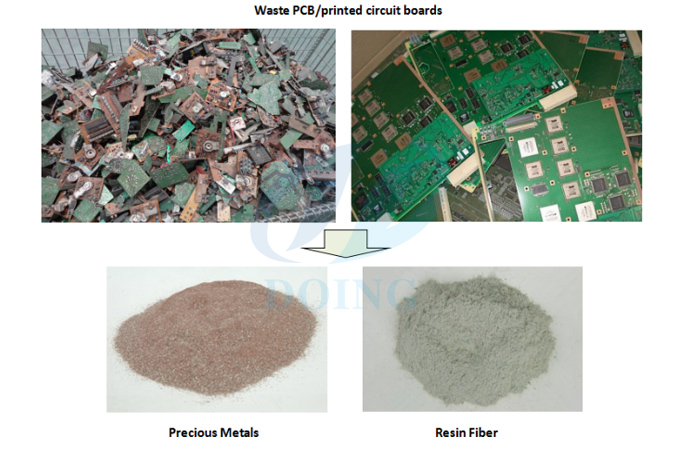

Final product of waste circuit board recycling machine
Final product of waste circuit board recycling machine
Doing sweet Service of waste circuit board recycling machine
♥. Pre-sale service:design and manufacture machines for you as your special requirements, provide you with project, process design, and purchase programm.
♥. On-sale service: accompany with you to look around our factory, explain the manufacture process of our printed circuit board recycling machine/waste PCB recycling equipment, and check the working performance of our machines.
♥. After-sale service: engineers are available to install and debugging equipments of the whole production line, besides, commissioning and training operators on site.
