Circuit board separator recycling machine(PCB separation recycling) is widely used for all kinds of circuit boards, PCB,FPC flexible circuit boards and so on. This technology can separate the materials containing the circuit board directly without disassembling.The circuit boards are separated and recycled by the following process: coarse material, magnetic separation in first step,fine breaking, dust collecting, winnowing, vibration screening, specific gravity separator, electric separation in second step.recovery rate can reach more than 99%.During the operation ,it only need to 1-2 people with fully automatic operation from feeding to sorting .It is named environmental dry separation, adopting physical method which doesn’t produce any pollution and doesn’t need heating ,setting on fire, water and any other chemical materials,low cost, high efficiency,non-pollution technology
Advantage of Circuit board separator recycling machine

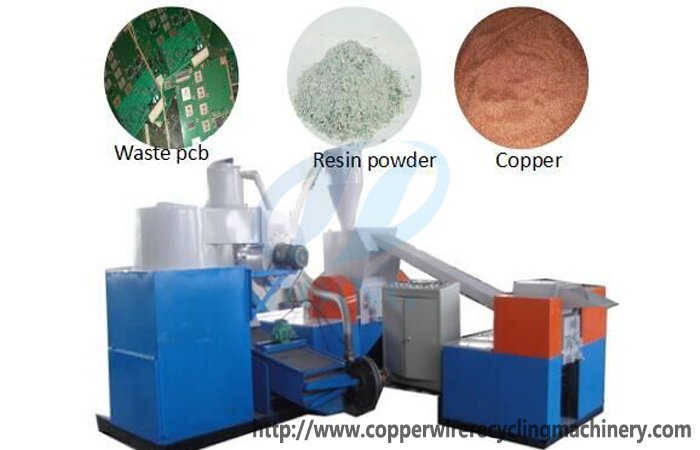

Circuit board separator recyclingmachine
1.To avoid dust pollution in the process, the equipment also uses the three-in-one dust removal equipment independently developed by the compan;
2.This dust removal equipment has three-stage dust removal: cyclone dust removal, bag dust removal and dust removal by air cleaner;
3.All of these effectively solve the problem of dust pollution with every index up to the national standard.
4.Saving motive power and human power

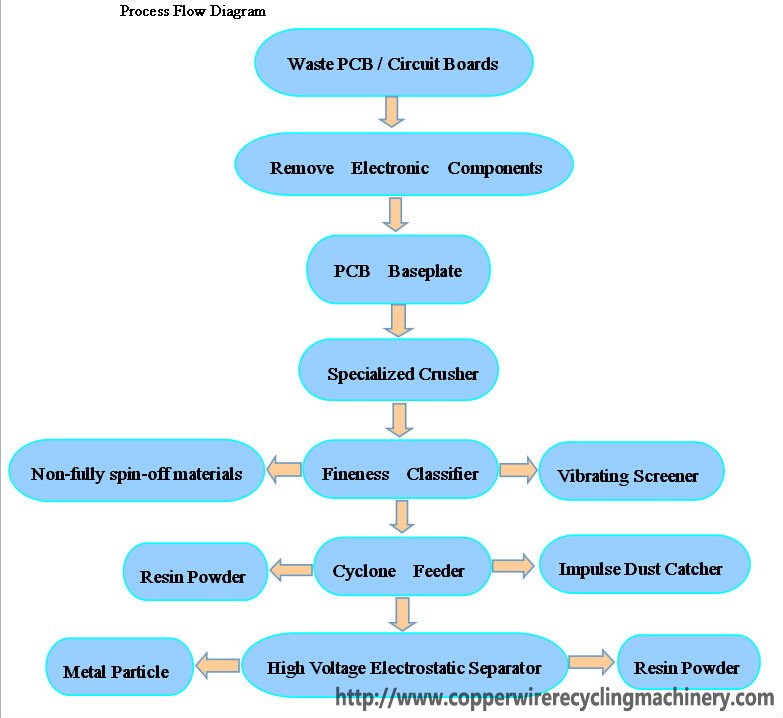

5.Without Wastes. Flow chart of Circuit board separator recycling machine
Flow chart of Circuit board separator recycling machine

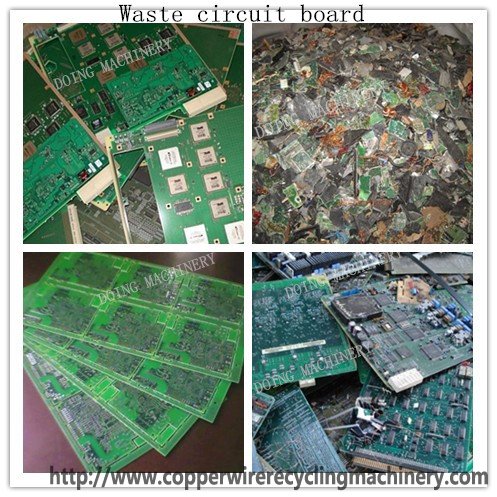

Raw material of Circuit board separator recycling machine
Circuit board separator recycling machine application to this raw materials, such as(a)Computer motherboards, Cell phone boards, Tv Boards, Freezer boards,Air-conditioner boards, Radio Boards, Printer boards, overleft of pcb , Coated copper plate/copper clad laminate.
Technical data of Circuit board separator recycling machine
