Waste circuit board crushing and sorting production line

Date:2023-11-16 13:40:35/ PCB recycling machine/ Chat Online/ Leave message

Brief introduction:

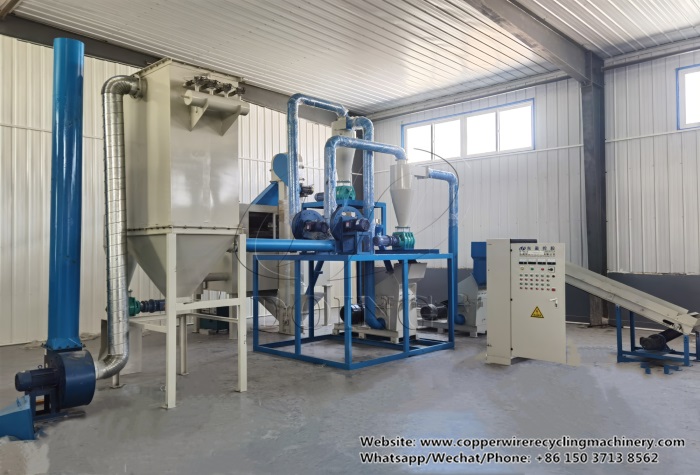

waste circuit board crushing and sorting production lineWaste circuit board crushing and sorting production line

Waste circuit board crushing and sorting production line is used to recycle various circuit boards to separate off mixed metallic and non-metallic materials.

Raw Materials: printed circuit boards, computer boards, TV boards, mobile phone boards, copper clad laminates, communication boards, game boards, home appliance board, electronic components, etc.

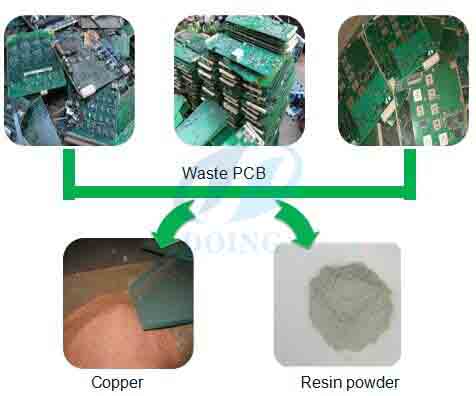

Final Products: Mixed metal powder and resin fiber powder.

Capacity: 100-2000 Kg/h(Support for custom)

The specific tech parameter table as following:

Capacity(Kg/h)  Overall DimensionPower(Kw)Weight(Kg)Recovery Rate
100-150kg/h8000*6000*4200mm42kw6000kg≥99%
200-300kg/h10000*6000*4200mm76kw7500kg
400-500kg/h16000*8000*4200mm95kw8500kg
500-700kg/h21000*9000*4200mm140kw10000kg
800-1000kg/h24000*10000*4500mm250kw14000kg
1500-2000kg/h28000*20000*5000mm470kw19000kg

Application:

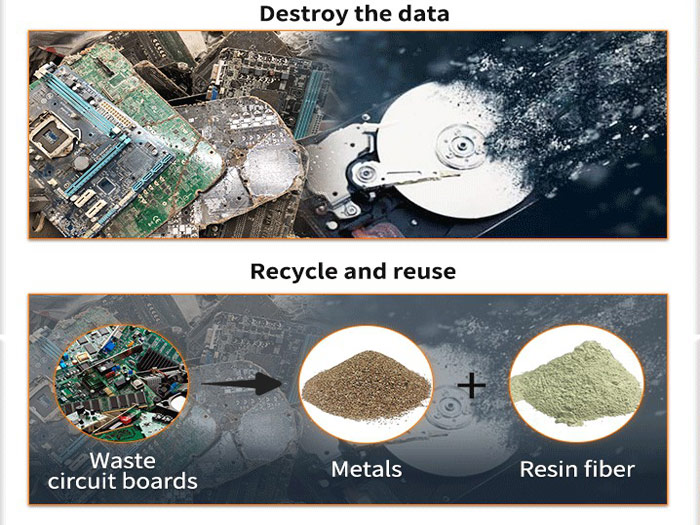

waste circuit board crushing and sorting production lineApplication

Waste circuit board crushing and sorting production line is generally used in the processing of circuit boards in discarded computers, mobile phones, printers, home appliances, etc. On the one hand, it can destroy the data on the circuit boards and protect our privacy; on the other hand, it can separate out the precious metals in the circuit boards to make profits.

Process introduction:

1. Shredding: The shredding adopts double-shaft shredder, which will shred the complete waste circuit boards into small pieces about 3-4cm;

2. Double-crushing: The hammerhead crusher and hammer crusher is used to pulverize the small pieces into a mixture with a particle size of about 2.5 mm; between the two crushing, a magnetic separator will be used to remove the iron.

3. Sieving: Eddy-vibrating screen will control the size of the particles; the bigger particles will be sent back to hammer crusher for further crushing until go through the screen of eddy-vibrating screen.

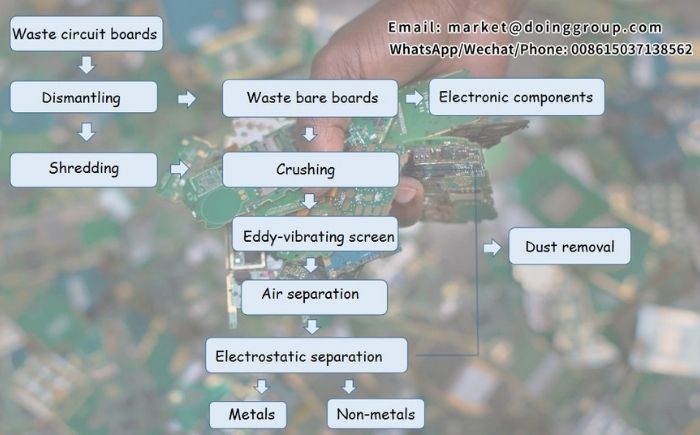

waste circuit board crushing and sorting production lineWorking process

4. Separating: Air separator and electrostatic separator will be used to separate the metals and non-metals(resin fiber powder) according to their different gravity and conductivity.

5. Dust collecting: Pulse dust collector and cyclone dust collector will collect the dust with the collecting rate of 99.9%.

The above is the waste circuit board crushing and sorting production line working video, hoping it can help you get a better understanding.

Tips: An electronic component dismantling machine could be used to remove the electronic components from the waste circuit boards to get purer metals.

Project cases:

As a recycling machine manufacturer with more than ten years of production and export experience, Henan Doing has installed our machines in more than 50 countries and regions, such as the United States, Russia, Australia, South Korea, Egypt, India, Bangladesh, Pakistan, etc., and are well received by customers from all over the world.

Advantages:

High recovery rate: The air separator and high-voltage electrostatic separator makes the separation finer and more efficient, and effectively controls the loss of non-ferrous metals.

Long use life: All accessories of waste circuit board crushing and sorting production line are made of high-quality materials to ensure the equipment has a long service life. For example, the shredder blade is made of H-13 alloy and the crusher blade is made of 65 manganese steel.

High degree of automation: Henan Doing’s waste circuit board crushing and sorting production line is equipped with PLC control system, only need one or two workers to operate, saving labor cost.

Environmental protection: The efficiency of pulse dust removal equipment is as high as 99%, which effectively suppresses dust volatilization, fully meets the national environmental protection requirements, and has no secondary pollution.

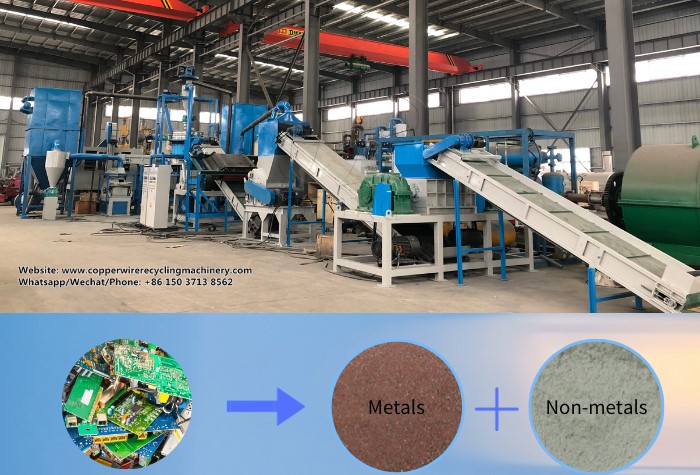

waste circuit board crushing and sorting production lineWaste circuit board crushing and sorting production line

If you are interested in our waste circuit board crushing and sorting production line, hurry up to contact us feel free.
