 PCB design board recycling equipment
PCB design board recycling equipment
PCB design board recycling equipment
 PCB design board recycling equipment is combined with the domestic and international advanced technology was developed. The PCB design board recycling equipment adopts the advanced physics law recovery processes; The developed crusher and high pressure electrostatic separation equipment innovation is strong, the recycling of the process route is advanced and reasonable.

 PCB design board recycling equipment technical data


Item Model Capacity(kg/h) Power(Kw) Size (m)(L*W*H) Weight(T) Remark
1 DY-400 100-200 28.5 3.5×1.5×3.0 1.8
2 DY-600 300-500 36.5 4.0×1.7×3.0 3.0
3 DY-800 500-800 90.0 4.5×1.5×4.2 7.7 Doubling crushing system
4 DY-1000 800-1000 104.2 4.8×1.8×4.2 9.4 Doubling crushing system

PCB design board recycling equipment raw material
circuit board recycling equipment
 PCB design board recycling equipment raw material


Latest technology PCB design board recycling equipment are used to recycle all kinds of Printed Circuit boards, such as the computer boards, cell phone boards, TV boards, aluminum-plastic boards, and other household appliances.

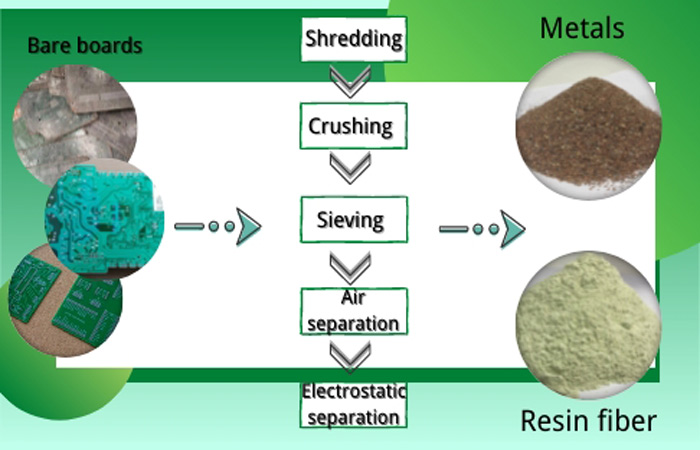

Latest technology PCB design board recycling equipment working process
pcb recycling machine
 PCB design board recycling equipment working process



Because of the special physical characteristics of E-waste circuit boards, our  PCB design board recycling equipment raw material  are adopt the dry-type grinding and separating technique to recycle and reuse. The printed circuit boards will be separated into metal powder and resin fiber powder.

1.The waste circuit boards will be crushed into small pieces.
2.Then will be grinded into the powder mixture of metal and resin fiber. The mixture will be completely separated via pulse air flow separation to get 97% mixed metal powder.
3. The rest mixture powder will go into the high voltage electrostatic separator, the purity can be up to 99.9%, and the impulse dust catcher is approached to efficiently prevent the dust pollution.
