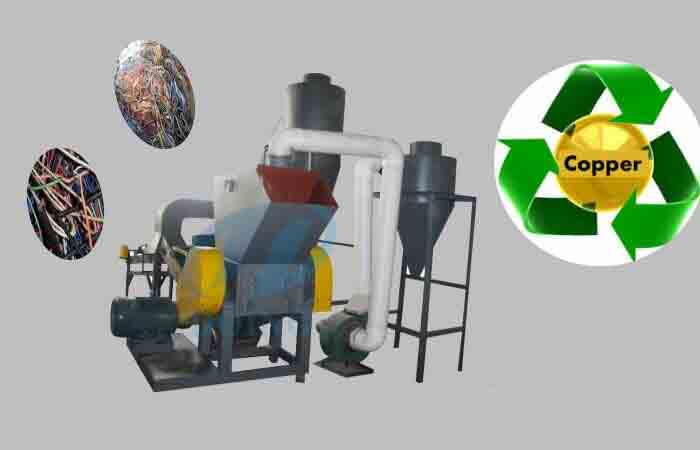

Industrial wire stripping machine
The industrial wire stripping machine belongs to the complete production line developed by our company to recycle the copper out of the various wires. The machine is featured with novel design, compact structure, low power consumption and stable performance. What’ more, it can separate copper granule from plastics completely.

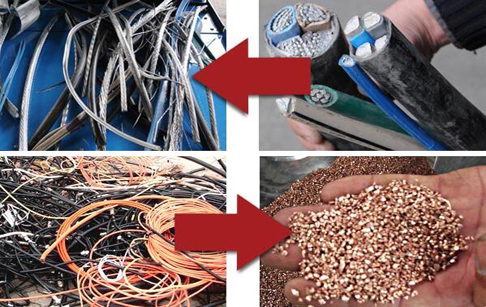

Suitable raw material application to industrial wire stripping machine
Industrial wire stripping machine raw maerial
Industrial wire stripping machine is specialized in recycling waste wires or cables( diameter between 0.2-20 mm), such as auto electric wire, motorcycle electric wire, computer wire, other various miscellaneous material cables, communication cables etc. The machine could process the scrap wires into copper and plastic particles to recycle to the greatest extent.
Industrial wire stripping machine Features
1. Wide Application: industrial wire stripping machine is designed to recycle various kinds of copper wire and cables with diameter between 0.2-20 mm.
2. Multi-function: industrial wire stripping machine combines the complex processes into one, including crushing, conveying, dust collecting, separating process. It can recycle both the copper granule and PVC plastic.
3. Environment-friendly: industrial wire stripping machine has solved the pollution caused by the burning of the copper wires. With high copper recycling rate of 99.9% at least, the device is with excellent dust removal performance because of the adoption of the fully closed production model.

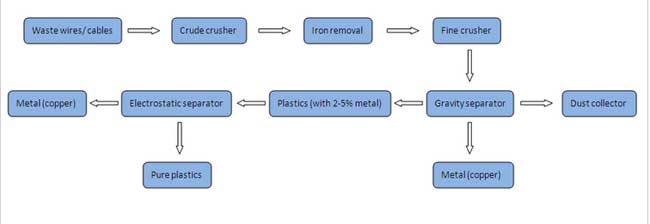

Industrial wire stripping machine process
Industrial wire stripping machine process
1. Starting
Please make sure all the machines and electrical equipments are in good condition. Then start the machine, and keep the machine running unloaded for 5-10 minutes before feeding.
Attention：
Boot sequence: suction fan1→suction fan 2→blower-feeding blower →riddler→mainframe.
Shutdown sequence: Riddler→blower→suction fan1→suction fan 2→feeding blower→mainframe
2. Feeding
Before feeding, pick up the debris especially the iron from the wires in case of the damage to the crusher blades. During the feeding period, the feeding speed should be in accordance with the crushing speed.
3. Fine crushing
If there is any abnormal noise, please stop and check the crusher, or change different size screen.
If there is too much copper or the produced particles are relatively small during the production process, replace the screen and adjust the distance between the fixed knife and the moving one.
If the machine is easy to overheat, stop the device and inspect the gearing.
4.Vibrating separator
After crushed, the mixed material will be delivered to vibrating device. The copper from vibrating separator is complete copper without plastic, while the copper clad from the opposite discharging hole needs the second crushing.

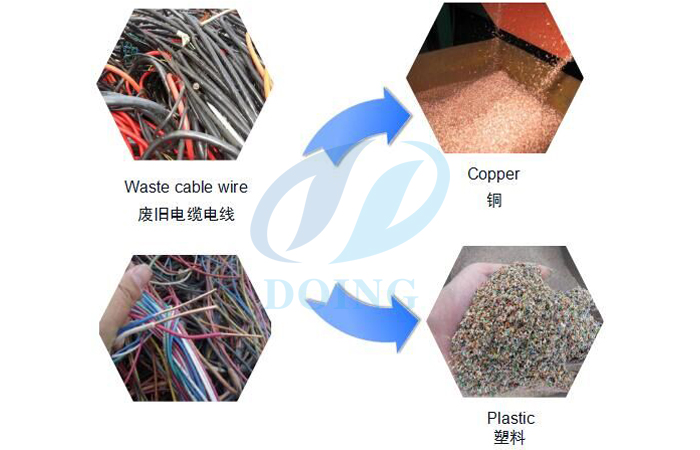

Final product of wire stirpping machine
