Scrap copper wire stripping tool

Date:2016-08-05 15:21:01/ Copper wire recycling machine/ Chat Online/ Leave message

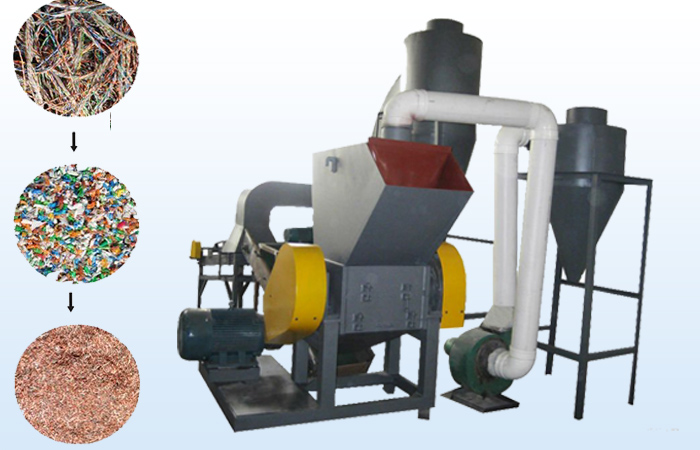

Scrap copper wire stripping tool

This scrap copper wire stirpping tool is an all-in-one compact plant, assembled with a blade mill for chopping scrap copper wires / cables and an air separating system to produce clean copper granules. It is popular in scrap copper wire / cable recycling industry.

Scrap copper wire stripping tool application

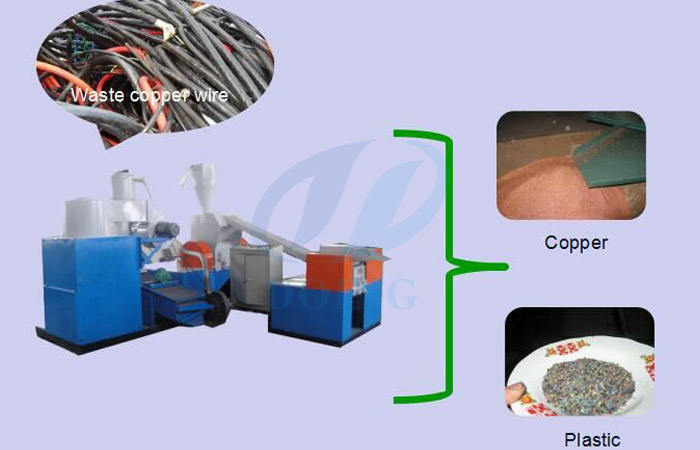

Scrap copper wire stripping tool application

This scrap copper wire stripping tool is designed to recycle copper wire and cable scraps, like automobile wires, tele-communication wires, and other kinds of cables, by chopping them and dry-separating copper granules from plastic or rubber.

Scrap copper wire stripping tool working principle

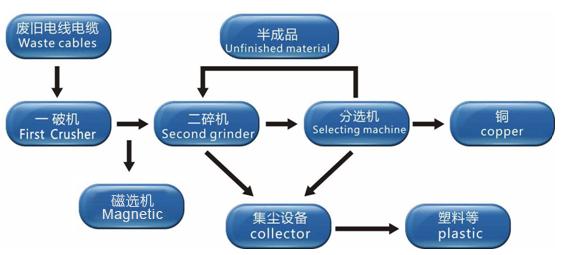

Working principle of scrap copper wire stripping tool

The scrap copper wire have been shattered into particles through the crusher, then the particles by belt conveyor transport into the screening machine, plastic and copper two kind of different density of material through screening, the plastic and copper flow to different discharge hole.

Scrap copper wire stripping tool feature

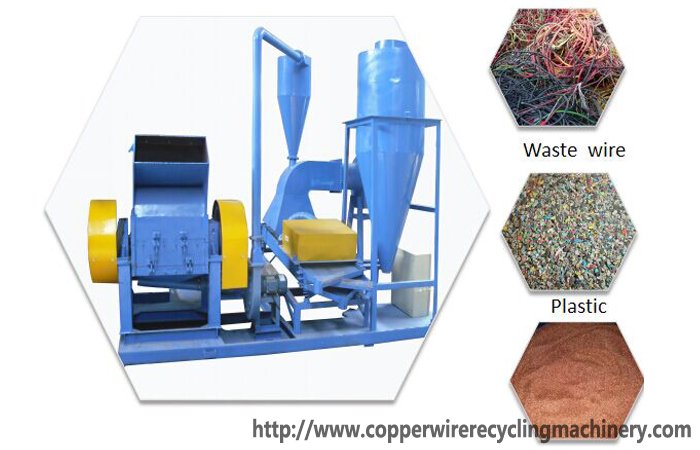

Scrap copper wire stripping tool

1. Maximum Outer Diameter of Cables Processed: 20mm.

2. Separation Rate: above 99.99% (Each Single Copper Conductor shall be 0.2mm-3mm in Diameter).

3. Mounted on a steel base and with forklift pockets, easy for transportation.

4. With a dust collection system, environment-friendly.

5. With Electricity Control Panel and Emergency Stop, safe for operation.

Scrap copper wire stripping tool final product

Final product of scrap copper wire stripping tool

Scrap copper wire stripping tool technical data

Item	Model	Capacity(kg/h)	Power(Kw)	Size (m)(LWH)	Weight(T)	Remark
1	DY-400	100-200	28.5	3.5×1.5×3.0	1.8
2	DY-600	300-500	36.5	4.0×1.7×3.0	3.0
3	DY-800	500-800	90.0	4.5×1.5×4.2	7.7	Doubling crushing system
4	DY-1000	800-1000	104.2	4.8×1.8×4.2	9.4	Doubling crushing system
