Scrap copper cable wire stripping tool
Doing's high performance Scrap copper cable wire stripping tool are specifically designed and manufactured systems for higher volume processing of waste wires. The functions of these systems include pre-shredding, steel removal, granulation and separation of plastics from copper or aluminum. The advanced design of these plants results in excellent separation of the different fractions, even when processing mixed cables of varying size and composition.
Raw material of Scrap copper cable wire stripping tool
Raw material of Scrap copper cable wire stripping tool
For Doing Scrap copper cable wire stripping tool, please check the available raw materials as below:
- All kinds of scrap wires, copper wire, aluminum wire, such as automobile electric line, motorcycle electric line, storage battery electric line, waste household appliance disassembly electric line, electromechanical equipment disassembly electric line, computer cable, telephone wire, cable TV line, communication cable and other scrap wires which are difficult to recycle, copper-clad plate, etc

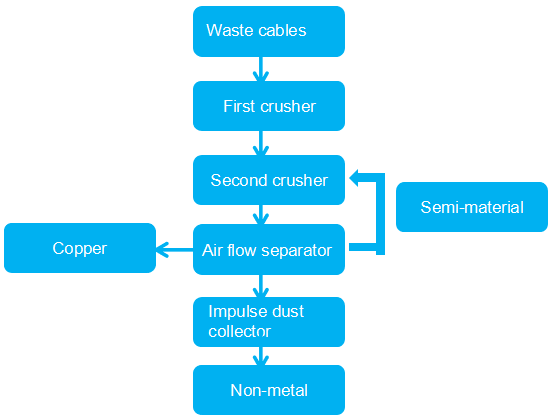

Scrap copper cable wire stripping tool working process
Scrap copper cable wire stripping toolworking process
1. Starting
Please make sure Scrap copper cable wire stripping tool and another equipments are in good condition. Then start the machine, and keep the machine running unloaded for 5-10 minutes before feeding.
Attention：
Boot sequence: suction fan1→suction fan 2→blower-feeding blower →riddler→mainframe.
Shutdown sequence: Riddler→blower→suction fan1→suction fan
2→feeding blower→mainframe
2. Feeding
Before feeding, pick up the debris especially the iron from the wires in case of the damage to the crusher blades. During the feeding period, the feeding speed should be in accordance with the crushing speed.
3. Fine crushing
If there is any abnormal noise, please stop and check the crusher, or change different size screen.
If there is too much copper or the produced particles are relatively small during the production process, replace the screen and adjust the distance between the fixed knife and the moving one.
If the Scrap copper cable wire stripping tool is easy to overheat, stop the device and inspect the gearing.
4.Vibrating separator
After crushed, the mixed material will be delivered to vibrating device. The copper from vibrating separator is complete copper without plastic, while the copper clad from the opposite discharging hole needs the second crushing.
Technical data of Scrap copper cable wire stripping tool
We will get copper and plastic by Scrap copper cable wire stripping tool
|
Model |
Voltage |
Power |
Capacity |
Dimension |
Weight |
|
DYTM-400 |
380V |
22.45 kw |
150-200kg/H |
2700*1900*2300(mm) |
1200kg |
|
DYTM-600 |
380V |
36 kw |
300-400kg/H |
3500*1900*2700(mm) |
3000kg |
|
DYTM-800 |
380V |
75 kw |
500-600kg/H |
5500*4500*3300(mm) |
8000k |
