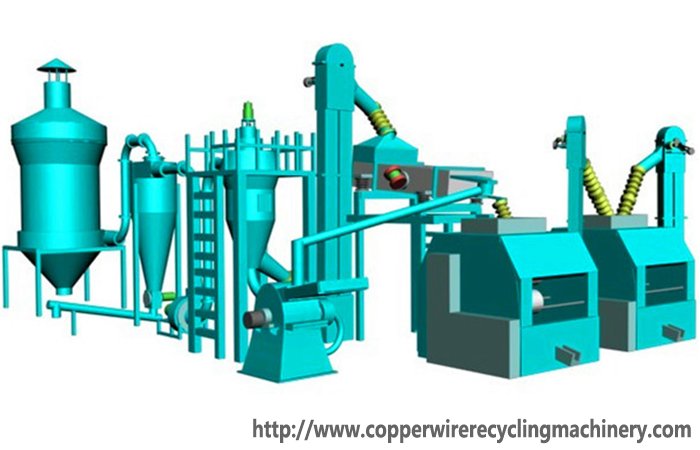

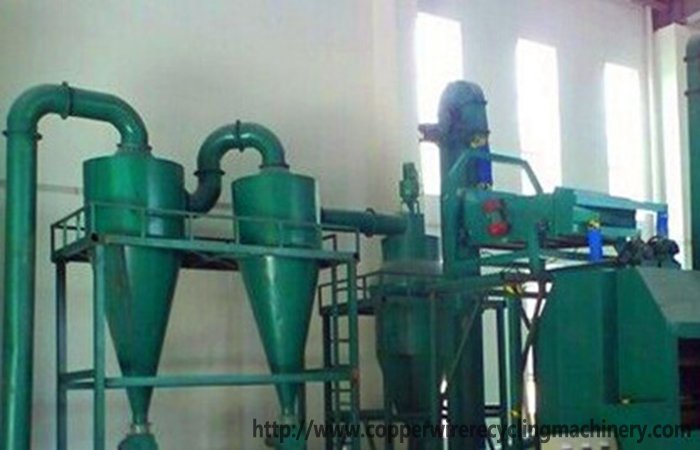

PCB recycling plant
Broken PCB recycling plant is mainly used for the separation of waste circuit boards, CCL, circuit boards and other materials in scrap metal and nonmetal. The successful development of the aircraft will not only improve the quality of recycled copper, but also to prevent secondary pollution. The production line for waste circuit board recycling processing take secondary crushing, making it the metal and resin fiber powder mixture; then sorting the metal and resin separation process route through wind and static electricity. In order to prevent dust pollution during processing, the backward flow sorting process by applying a pulse dust collector, effectively solve the problem of dust pollution.
2.Pcb recycling plant characteristic:
1, compact structure, reasonable layout, stable performance, low noise.
2, PLC control complete production lines evenly feed, coordinated operation.
3, three-stage crushing, the processing capacity per hour 1200kg.
PCB recycling plant
5, a full production line using vacuum feed effectively reduce dust overflow.
6, back to the material system the grinding more efficient.
7, air separation equipment sorting rate of 97 to 99%
8, pulse dust equipment efficiency as high as 99.99%.
9, high-voltage electrostatic separator make sorting more sophisticated and more efficient, effective control of non-ferrous metal loss.
10, full production line bridge and guardrail height settings, easy maintenance personnel of the equipment for real-time monitoring and maintenance.
11, smashing equipment hydraulic system set up to facilitate the replacement of wearing parts, improve work efficiency.

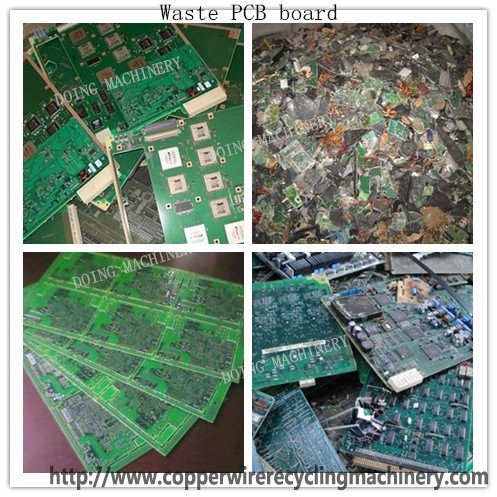

3.Pcb recycling plant raw material
Pcb reycling plant can dispoal this raw material
4.Process flow diagram of pcb recycling plant

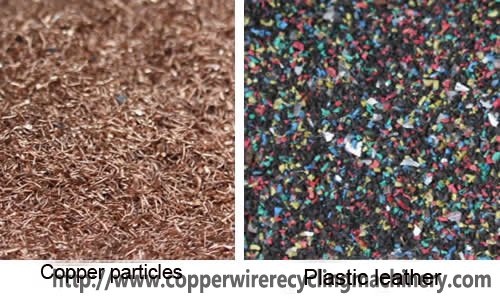

5.Pcb recycling plant final product
