Scrap PCB recycling equipment

Date:2024-01-09 13:42:20/ PCB recycling machine/ Chat Online/ Leave message

Introduction:

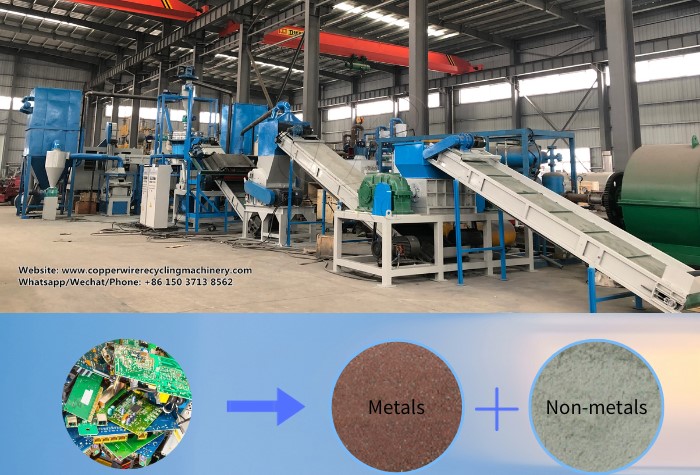

scrap PCB recycling equipmentScrap PCB recycling equipment

Scrap PCB recycling equipment is used to recycle all kinds of printed circuit boards to separate the precious metals from resin fiber.

Application:

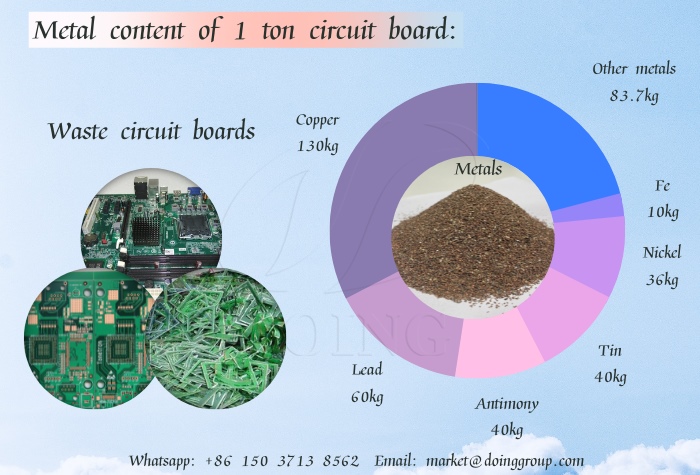

scrap PCB recycling equipmentMetal content in circuit board

Take a normal PCB boards for example, the percentages of the electronic components, baseboard, and soldering tin are 58%, 37%, and 5% separately. Every one-ton baseboard includes about 40% metal materials(like gold, copper, iron, tin, nickel, plumbum) and 60% non-metals. By estimate, 1 ton computer circuit boards, contains 300-500g Gold, 130kg Copper, 10kg Fe, 60kg Lead, 40kg Tin, 36kg Nickel, 40kg Antimony and some other rare precious metals, like platinum, palladium, etc.

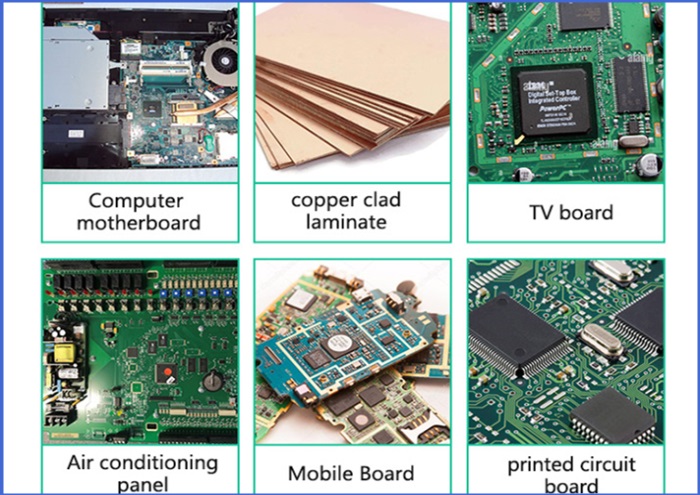

scrap PCB recycling equipmentRaw materials

Scrap PCB recycling equipment is designed for processing these waste PCBs, such as computer boards, cell phone boards, TV boards, copper-clad laminate and other household appliances boards and the leftover materials.

Working video:

This is the working video of scrap PCB recycling equipment. The key process as follows:

0:00-0:18 Equipment display

0:19-0:32 Shredding - Shred waste circuit boards into small pieces

0:33-01:33 Crushing - Crush circuit board pieces into small particles

01:34-02:02 Sieving - Sieve bigger particles and sent them back to crusher

02:03-02:15 Air separation - Separate precious metals and resin fiber according to the different gravity

02:16-02:22 Electrostatic separation - Separate the fine metals from resin fiber according to the different conductivity

Parameter:

Capacity(Kg/h)  Overall DimensionPower(Kw)Weight(Kg)Recovery Rate
100-150kg/h8000*6000*4200mm42kw6000kg≥99%
200-300kg/h10000*6000*4200mm76kw7500kg
400-500kg/h16000*8000*4200mm95kw8500kg
500-700kg/h21000*9000*4200mm140kw10000kg
800-1000kg/h24000*10000*4500mm250kw14000kg
1500-2000kg/h28000*20000*5000mm470kw19000kg

Configuration:

Scrap PCB recycling equipment has different models, the configuration is also different. For example, DY-100 scrap PCB recycling equipment is mainly consisted of a crusher, eddy-vibrating screen, air separator, electrostatic separator and pulse dust collector. DY-500 scrap PCB recycling equipment includes shredder, two crushers, eddy-vibrating screen, air separator, electrostatic separator and pulse dust collector.

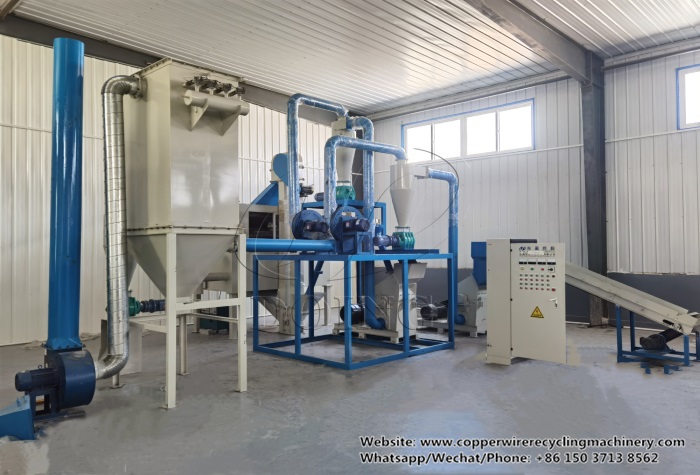

scrap PCB recycling equipmentScrap PCB recycling machine

Henan Doing's scrap PCB recycling equipment can be customized according to the customers' processing capacity and configuration. Welcome to contact us to order your scrap PCB recycling equipment, if you are interested in it.
