Copper granulator process

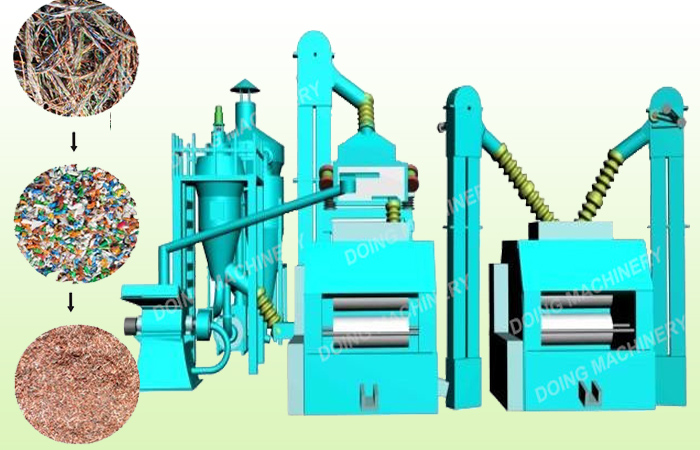

Copper wire granulator separator process machine
Copper wire granulator separator process machine  are mainly used to recycle all kinds of waste cable wires, the raw materials will be separated into tiny copper rice and PVC, the applicable range of the wires diameter from 0.3 mm to 20 mm, such as automobile electrical route, car bottom lines, motorcycle electric line, computer case line and communication cable, etc.
Copper wire granulator separator process machine is a kind of machinery that can recycling waste copper wire and separated copper and plastic after crushed.

What is the complete Copper wire granulator separator process ?
copper granulator separator
Copper wire granulator separator process machine

1. Starting

Please make sure waste copper recycling process plant and another equipments are in good condition. Then start the machine, and keep the machine running unloaded for 5-10 minutes before feeding.


Boot sequence: suction fan1→suction fan 2→blower-feeding blower →riddler→mainframe.

Shutdown sequence: Riddler→blower→suction fan1→suction fan 2→feeding blower→mainframe

2. Feeding

Before feeding, pick up the debris especially the iron from the wires in case of the damage to the crusher blades. During the feeding period, the feeding speed should be in accordance with the crushing speed.

3. Fine crushing
copper separtor machine
Copper wire granulator separator process machine

If there is any abnormal noise, please stop and check the crusher, or change different size screen.

If there is too much copper or the produced particles are relatively small during the production process, replace the screen and adjust the distance between the fixed knife and the moving one.If the machine is easy to overheat, stop the device and inspect the gearing.

4.Vibrating separator

After crushed, the mixed material will be delivered to vibrating device. The copper from vibrating separator is complete copper without plastic, while the copper clad from the opposite discharging hole needs the second crushing.
